Specification

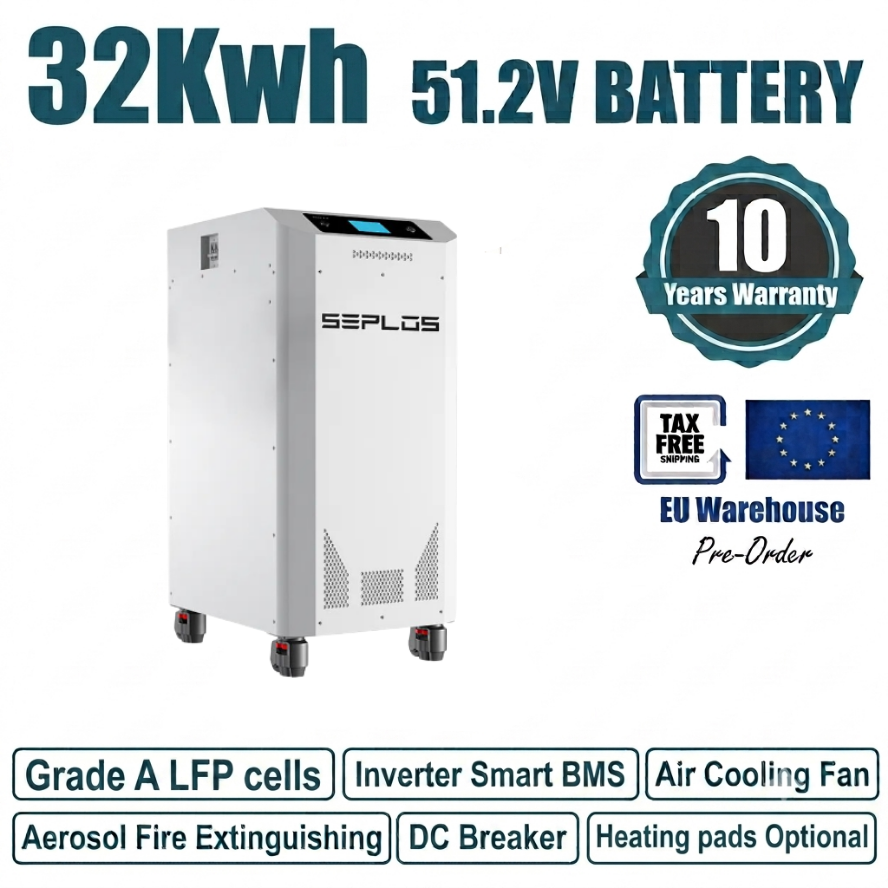

Model：Mason-628L-N
Normal Voltage:51.2V
Norminal Capacity:628AH(Optional)
Configuration:2P16S
Energy Storage:32/64/96/128/160Kwh
Dimension(L*W*H):416×560×910mm
Net Weight:245kg± 3kg
Built-In BMS:16S 200A Bluetooth BMS
Communication:RS485/CANbus
Rated Charge/Discharge Current(A):200A
Maximum Charge/Discharge Current(A):200A
Working Voltage(V):41.6V~57.6V
Humidity(%):5%~80%
Battery Cells Inside Grade A HSEV Power Cells
Stackable Type:up to 16 batteries
Cycle life:8000 cycles≥70% SOH
Designed for high-demand energy storage applications, our 51.2V LiFePO4 battery packs offer scalable capacity options of 560Ah (28kWh), 600Ah (30kWh), or 628Ah (32kWh). Each pack features a 2.5A active balance system to ensure cell uniformity, a built-in circuit breaker for overcurrent protection, and an integrated cooling fan for thermal management. With LiFePO4 chemistry, these batteries deliver over 8000 charge cycles, making them ideal for residential solar systems, commercial energy storage, and grid/off-grid power solutions.
