Seplos 512V 25.6KWh Lithium Iron Phosphate LiFePO4 Battery Pack Home Storage Batteries
Seplos 512V 25.6KWh Lithium Iron Phosphate LiFePO4 Battery Pack Home Storage Batteries
★Service: 10 Years Warranty
★Support: OEM, ODM, OBM, Customized
★Certificates: CE, MSDS, IEC, UN38.3, ISO, etc.
The HITEN-HV-AC-S5 LiFePO4 Energy Storage System delivers 25.6kWh of reliable power for residential, off-grid, and commercial applications.
Key Features

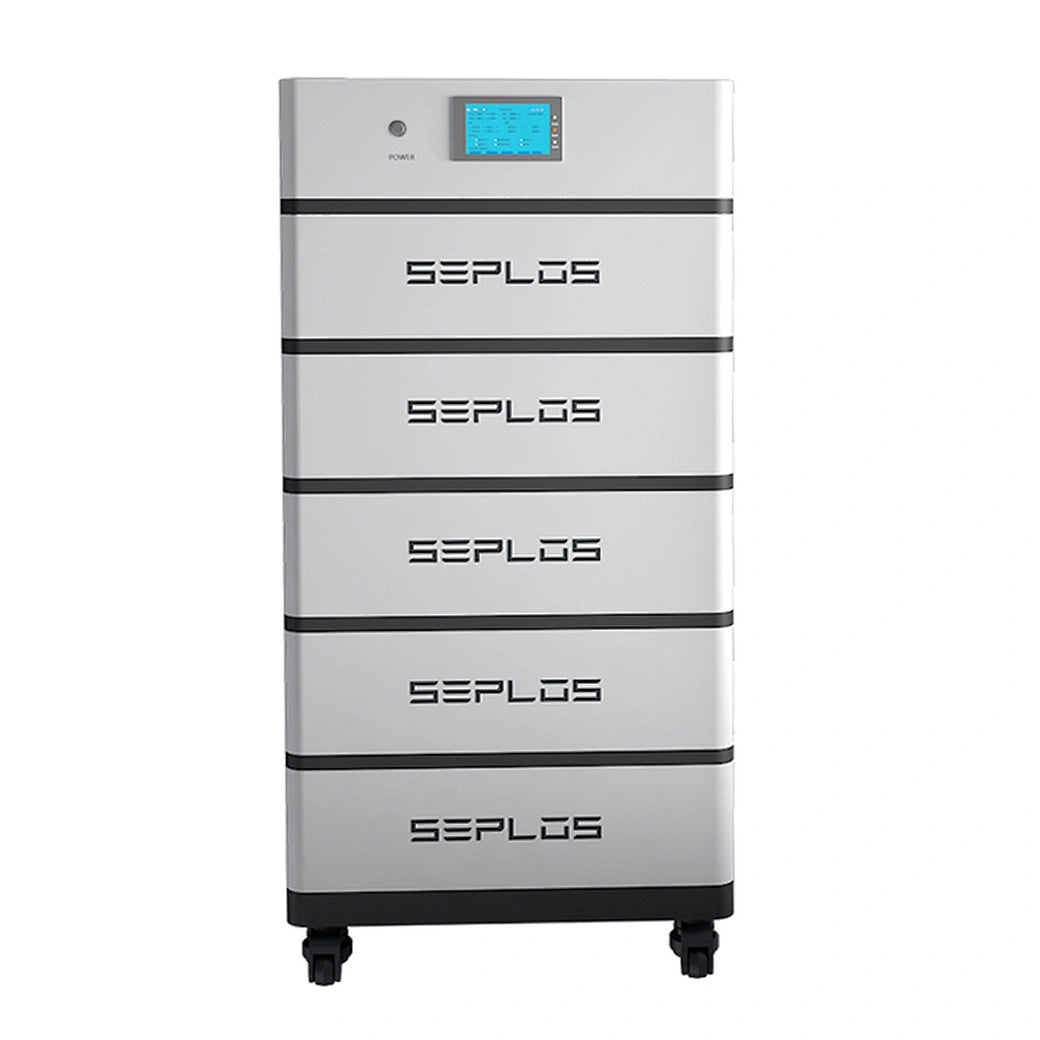

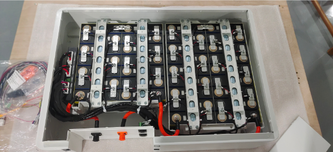

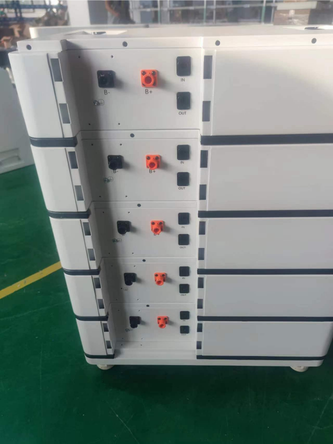

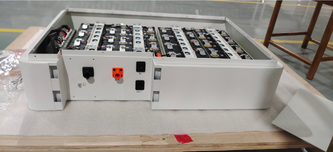

- Features LiFePO₄ cells in a 1P32S configuration. Five modules can be combined to reach 25.6 kWh and 512V, offering scalable and stable power.

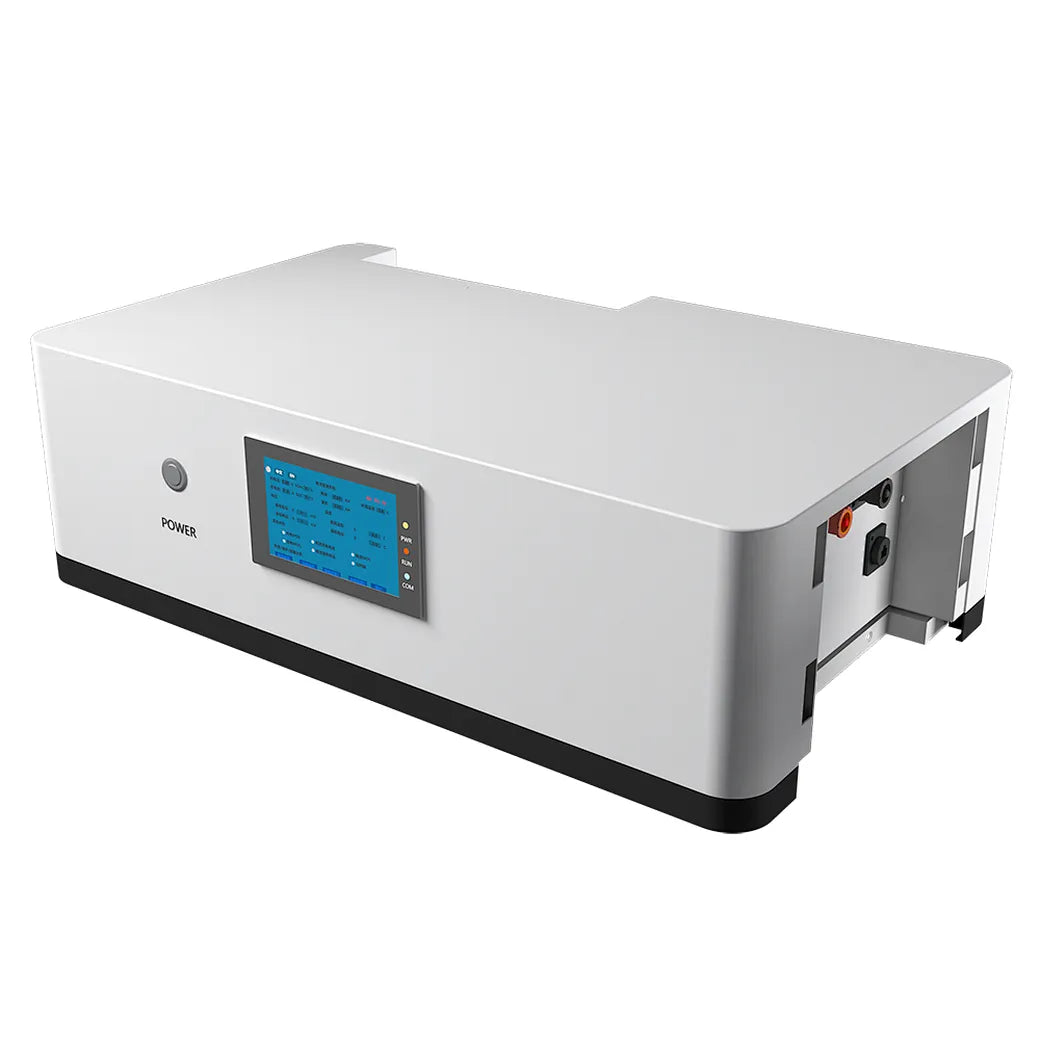

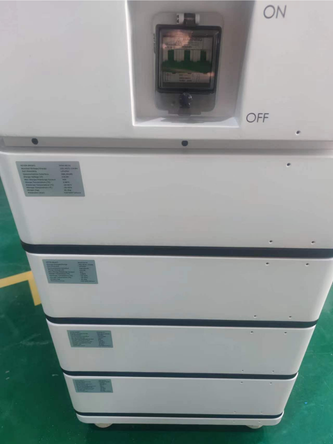

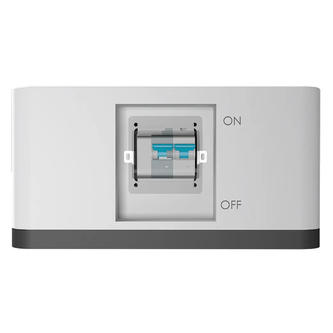

- Includes a master control unit with an LCD screen for real-time access to critical battery data and easy system management.
- Stores solar or wind energy for later use. Supports peak shaving, load shifting, and participation in demand response programs like net metering.
- Reduces electricity costs by shifting usage to off-peak hours and can generate revenue by supplying power to the grid during high-demand periods.
Technical Parameters
| Item | Specifications |
|---|---|
| Rated energy(kWh) | 25.6KWh |
| Configuration | 5×32S1P |
| Nominal Voltage(V) | 512V |
| Nominal Capacity(Ah) | 50Ah |
| Working Voltage(V) | 432-584V |
| Rated charge/ discharge Current(A) | 50A |
| Rated charge/ discharge power( KW) | 25.6KW |
| Working Temperature | -15-45(℃) |
| Weight(Kg) | 265±10KG |
| Cell chemistry | Lithium Iron Phosphate |
| Cycle life | 5000 cycles |

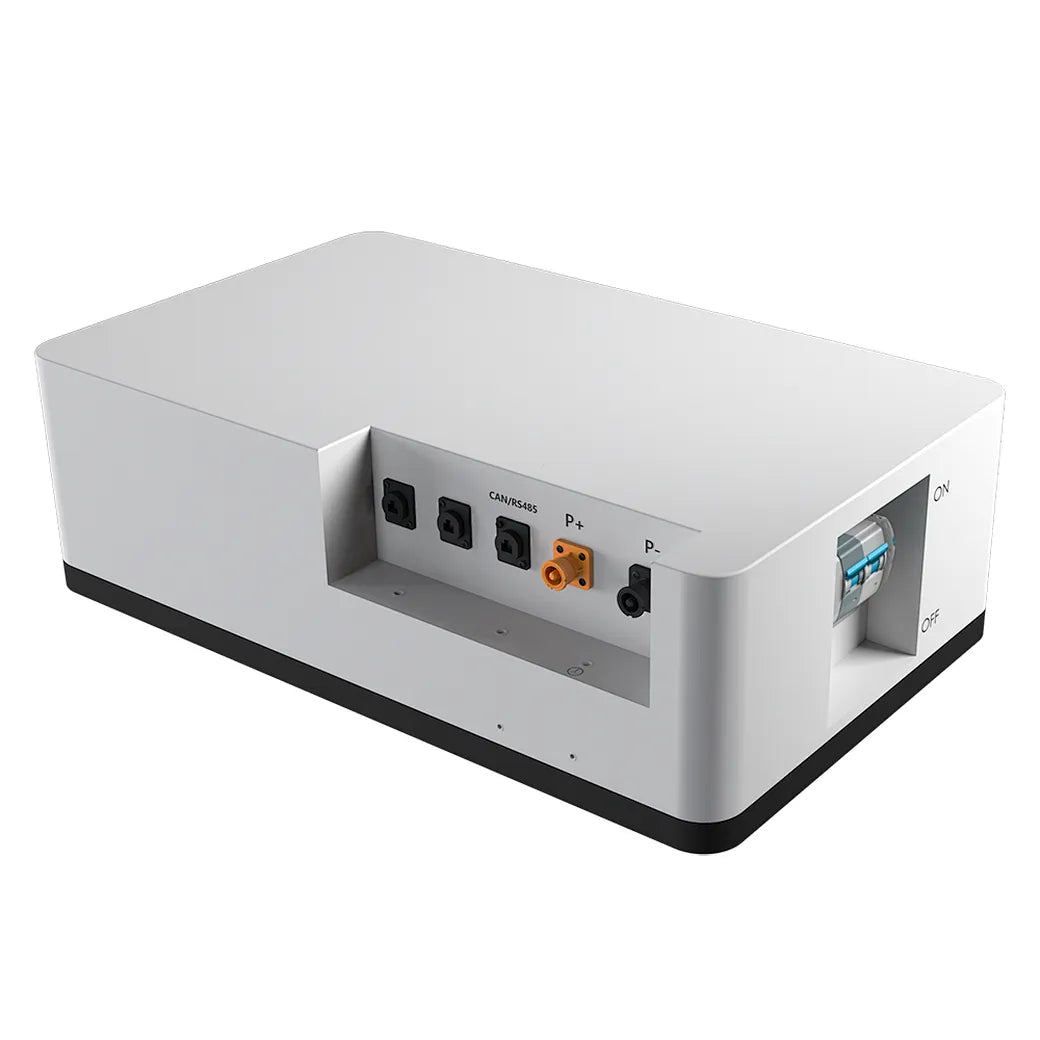

| Communication mode | CAN&RS485 |
High Voltage Energy Storage Solution - Suitable Inverters
| Brand | Protocol | Communication | Versions |
|---|---|---|---|
| Sofar | BMS CAN BUS Protocol | CAN | V1.001 |
| Goodwe | GoodWe HV BMS Protocol (CAN) | CAN | V1.4 |
| Deye | CANBUS Protocol Of High Voltage System | CAN | V1.0 |
Advantages of Our HV battery packs
- Cost Saving: 25.6kWh usable energy at a competitive price, reducing your energy storage project budget
- Air Cooling Fan: Efficient heat dissipation ensures stable operation during prolonged use
- Aerosol Fire Suppression: Automatic fire protection enhances safety and minimizes damage risk

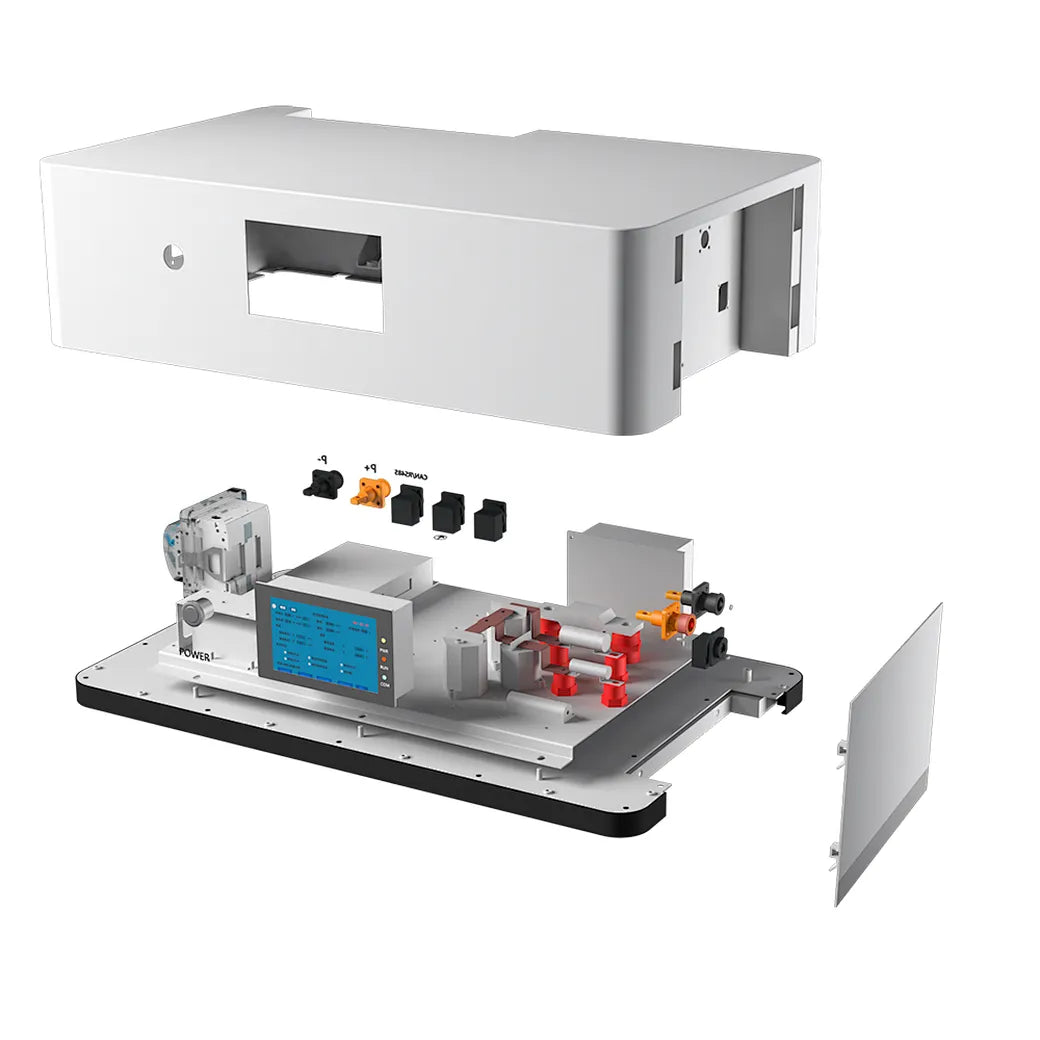

Built-in Intelligent BMU
Intelligent Control System
- Overcharge, over-discharge, and overcurrent protection
- Active cell balancing for optimal performance
State Monitoring:
- Real-time SOC (State of Charge) calculation
- SOH (State of Health) estimation
- Voltage, current, and temperature monitoring
Communication:
- CAN and RS485 protocol support
- Compatible with inverters and monitoring systems
- Remote control and data exchange
Fault Diagnosis:
- Real-time fault detection and alerts
- Event logging with timestamps
- Diagnostic codes for troubleshootin
25.6KWh LiFePO4 Battery Bank - 15-Year Reliable Power
Built with A-grade lithium iron phosphate cells and advanced BMU protection, this system delivers 8,000+ cycles of safe, efficient energy storage.
Why Choose This System:
- 15-year lifespan with 8,000+ charge cycles
- Multi-layer BMU protection for maximum safety
- Eco-friendly: lead-free and acid-free
- Certified: CE, IEC, UN38.3, MSDS compliant
- 10-year warranty included
This 25.6kWh battery bank features A grade LiFePO4 cells with 15-year lifespan and 8000+ cycles. Advanced BMU ensures safe operation. Eco-friendly, certified (CE, IEC, UN38.3, MSDS etc), and backed by 10-year warranty.
Highly Compatible with Various Inverters
Compatible with all Pylontech-protocol inverters via CAN or RS485. Supported brands include PYLONTECH, SUNSYNK, Afore, Growatt, SMA, SOROTEC, GOODWE, Victron Energy, Deye, SOFAR SOLAR, Voltronic Power, and Sol-Ark. Custom protocol matching available upon request.
• Expandable from 10.24KWh to 25.6KWh for Larger Energy Needs
A single 512V 50Ah solar battery offers 10.24kWh, but it supports modular parallel connection, allowing the capacity to expand up to 25.6kWh.
• Suitable for a Wide Range of Applications
25.6KWh Lithium battery packs are widely applicable to the following scenarios:Home Energy Storage, Commercial Storage, Industrial Backup Power, Off-Grid Power Systems, Grid-Tied Power Systems, and Uninterruptible Power Supplies (UPS) etc.
