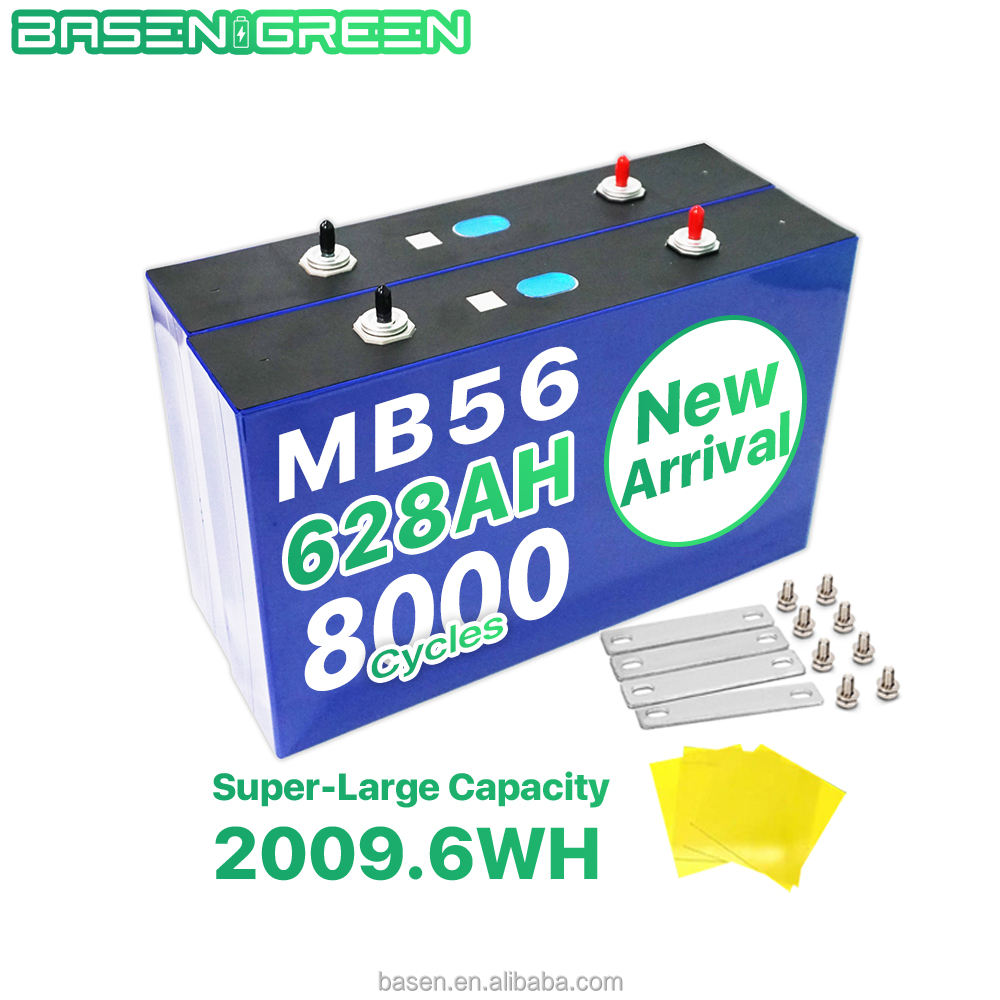

EV MB56 628Ah Prismatic LFP Battery Cell 8000 Cycles LF560K 3.2V Lithium Ion Battery for Energy Storage System
EV MB56 628Ah Prismatic LFP Battery Cell 8000 Cycles LF560K 3.2V Lithium Ion Battery for Energy Storage System
Regular price
$104.00 USD
Regular price
Sale price
$104.00 USD
Unit price
per
Shipping calculated at checkout.
Buy More to Save More:
4-16 US$110
16-64 US$105
64-160 US$101
160+ US$99
Description
MB56 EVE 3.2V 628Ah LiFePO4 cell with long cycle life and high energy density. Ideal for residential and commercial energy storage systems.
Benefit of the EVE MB56 628Ah Cell
High Energy Density
- Each cell provides ~2.01 kWh (3.2 V × 628 Ah), reducing the number of cells and wiring for large-scale BESS.
Long Cycle Life — Greater Value Over Time
- With a cycle life exceeding 6000 cycles at 25 °C (retaining 80% capacity), the EVE MB56 ensures stable operation for more than 15 years, significantly reducing the total cost of ownership.
- Even under 45 °C high-temperature conditions, it maintains over 2000 cycles at 80% capacity, proving its reliability in demanding environments.
High Efficiency Across All Conditions
- Operating from –30 °C to 60 °C, the MB56 delivers reliable power even in harsh climates, ensuring steady performance year-round.
- With up to 94% round-trip energy efficiency, it minimizes energy loss during charging and discharging, helping you maximize the net yield of your energy storage system (BESS).
Proven Safety — Certified and Reliable
- The MB56 has passed the most rigorous safety tests, including overcharge, over-discharge, short-circuit, crush, and thermal runaway.
- Its pressure-relief valve and reinforced prismatic design deliver multi-layer protection from cell to system, guaranteeing no fire, no explosion — even under extreme conditions.
Robust Design for Easy System Integration
- Developed for large-scale energy storage applications, the MB56 provides detailed swelling-force vs. cycle-life curves and recommended compression parameters, simplifying mechanical design for pack and module engineers.
- Each terminal supports 800 N pressure and 6 N·m torque, compatible with high-power laser welding, ensuring long-term electrical reliability.
Smart Battery Management — Precision Control for Longer Life
- An accurate SOC-OCV correlation map and multi-temperature charging strategy allow your BMS (Battery Management System) to control charging and discharging more precisely.
- This intelligent management enhances battery longevity, energy utilization, and overall system efficiency in every use scenario.
EVE MB56 Datasheet
| Model | EVE MB56 | Notes |
|---|---|---|
| Rated Capacity | 628Ah | 0.5P/0.5P Discharge, 2.5-3.65V, 25±2°C |
| Rated Energy | 2009.6Wh | 0.5P/0.5P Discharge, 2.5-3.65V, 25±2°C |
| Operation Voltage Range | 2.5-3.65V | T≤0°C |
| 2.0-3.65V | T≥0°C | |
| Standard Charging Power | 0.5P | 25°C±2°C |
| Standard Discharging Power | 0.5P | 25°C±2°C |
| Maximum Continuous Charging Power | 0.5P | 25°C±2°C |
| Maximum Continuous Discharging Power | 0.5P | 25°C±2°C |
| Initial ACR | 0.10 mΩ±0.05 mΩ | Fresh cell, SOC AC 1 kHz, Delivery SOC 50%±5%, IC 10s |
| Initial DCR | ≤0.3mΩ | 25°C, Fresh cell (cells within 30 days after EOL) |
| Shipping SOC Status | 20%-50% | / |
| Monthly Self-Discharge | First Month ≤3.0% / M | Delivery SOC status, 25°C±2°C storage |
| After First Month ≤3.0% / M | ||
| Cell Weight | 11400g ±169g | / |
| Cell Dimension | Height= 206.7±0.5 mm | With Terminal |
| Height= 204.5±0.5 mm | Without Terminal | |
| Length= 352.2±0.5 mm | / | |
| Thickness= 71.7 ± 0.5 mm | 300 kgf ± 20 kgf compression force, Delivery SOC | |
| Center distance between the poles: 180.0 ± 0.5 mm | / | |
| Operation Temperature | Charge: 0°C~60°C | / |
| Discharge: -30°C~60°C | ||
| Storage Temperature | 1 year: 0~25°C | Shipping SOC Status |
| 3 months: 0~35°C | ||
| 1 month: -20~45°C |
