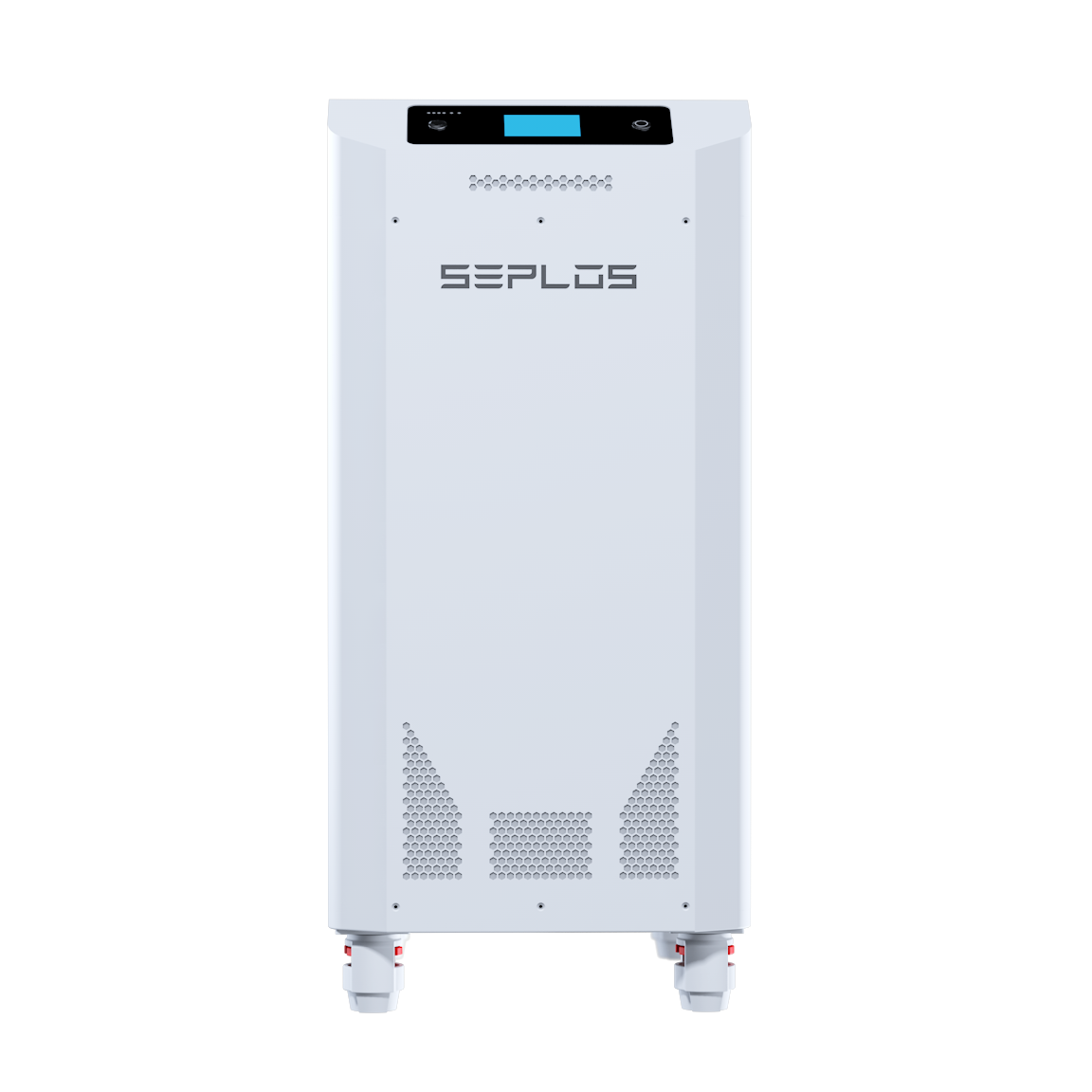

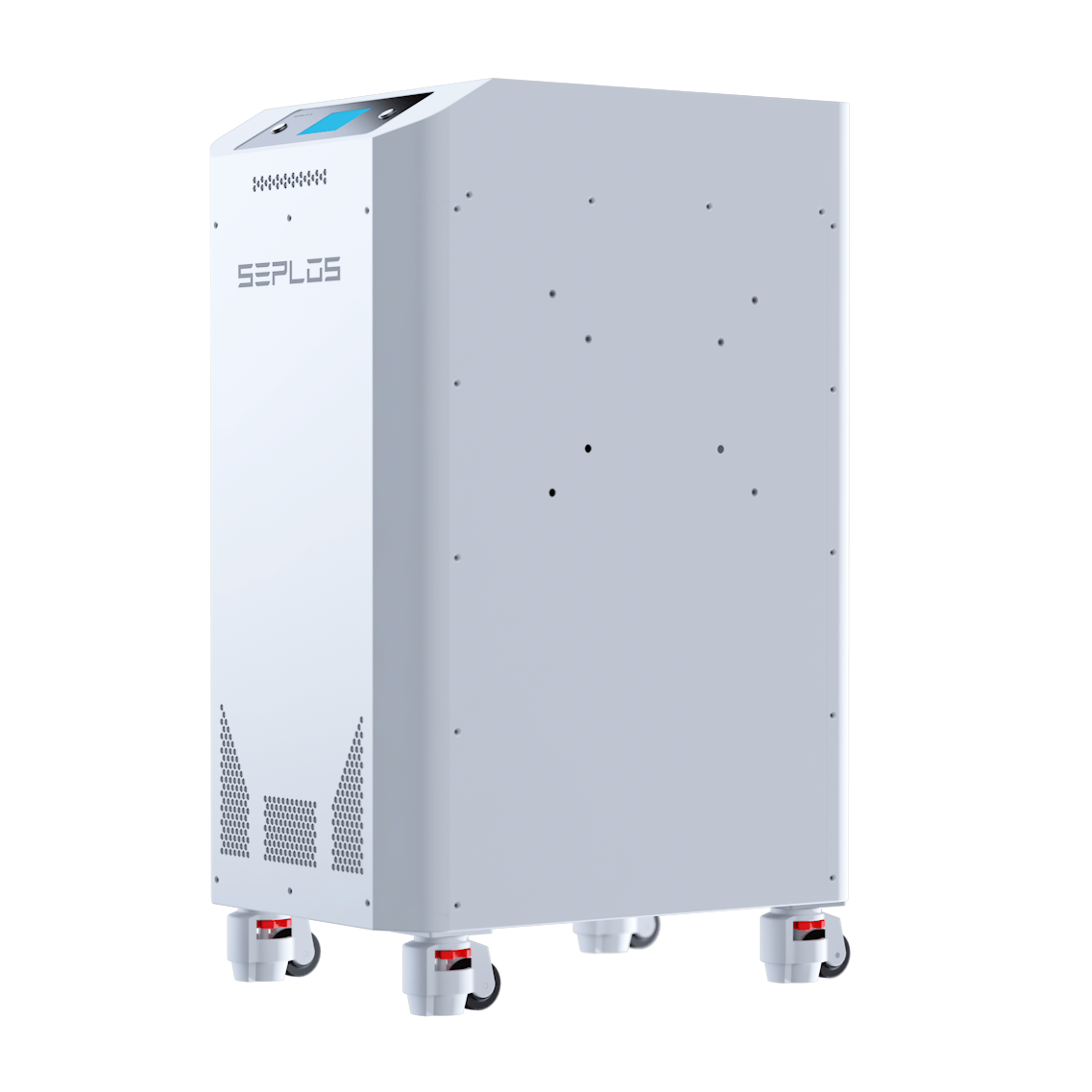

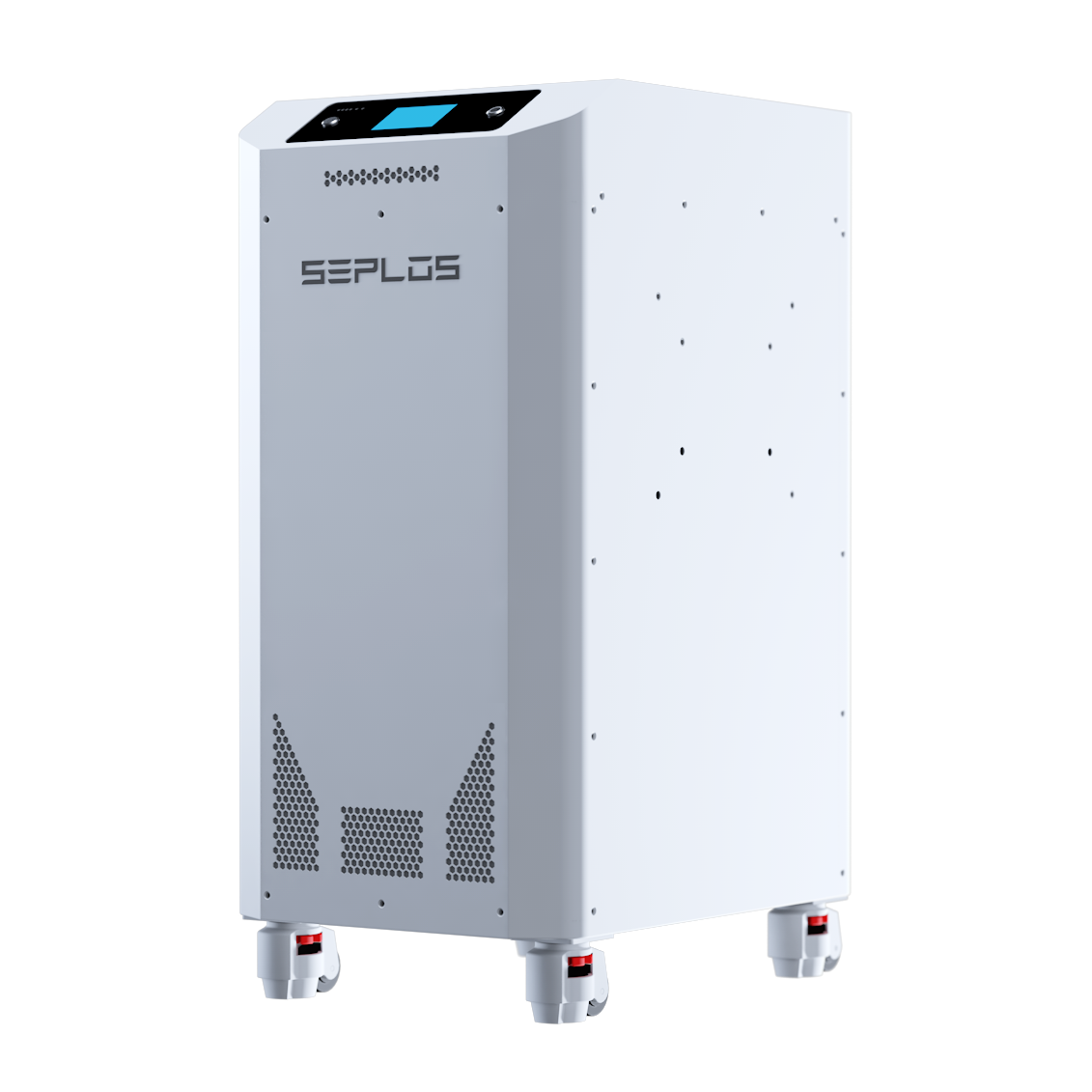

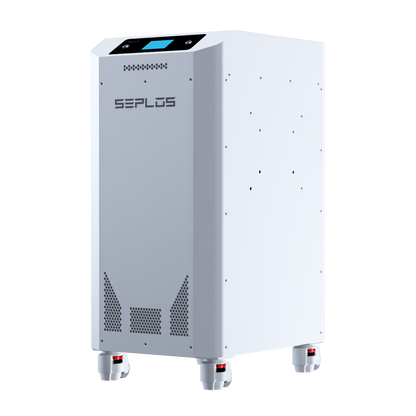

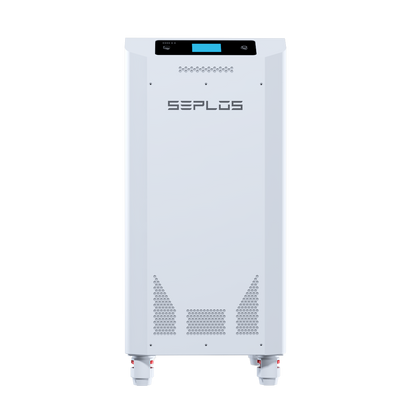

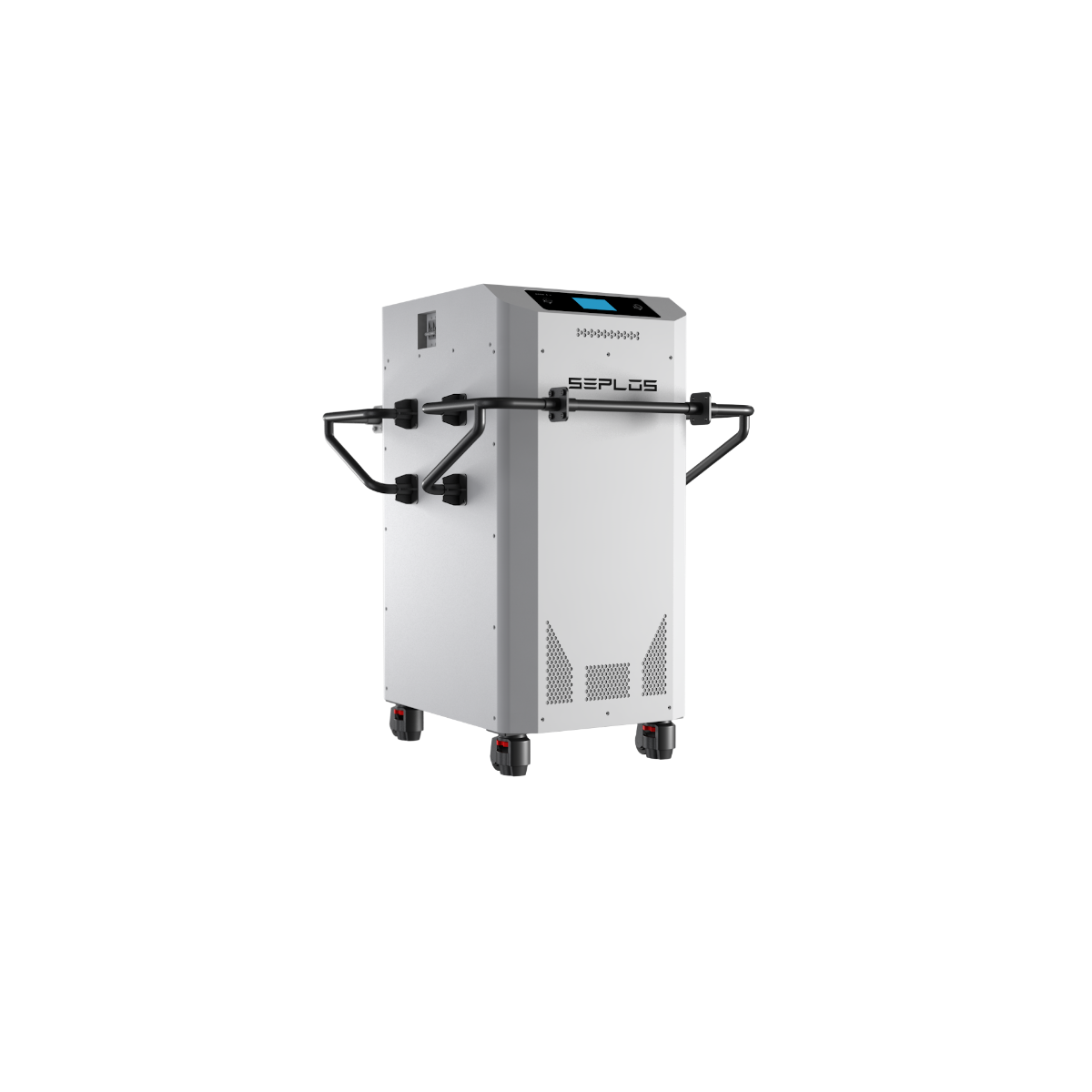

EU Warehouse-Mason 628Ah/560Ah LiFeP04 Battery 32KWh battery packs
EU Warehouse-Mason 628Ah/560Ah LiFeP04 Battery 32KWh battery packs
★Service: 10 Years Warranty
★Support: OEM,ODM,OBM,Customized
★Certificates: IEC,CE,ROHS,UN38.3,ISO etc.
The Mason 51.2V 628Ah LiFePO4 Energy Storage System delivers 32kWh of reliable power for residential, off-grid, and commercial applications.
Key Features
- 32kWh high-capacity storage for sustainable energy management

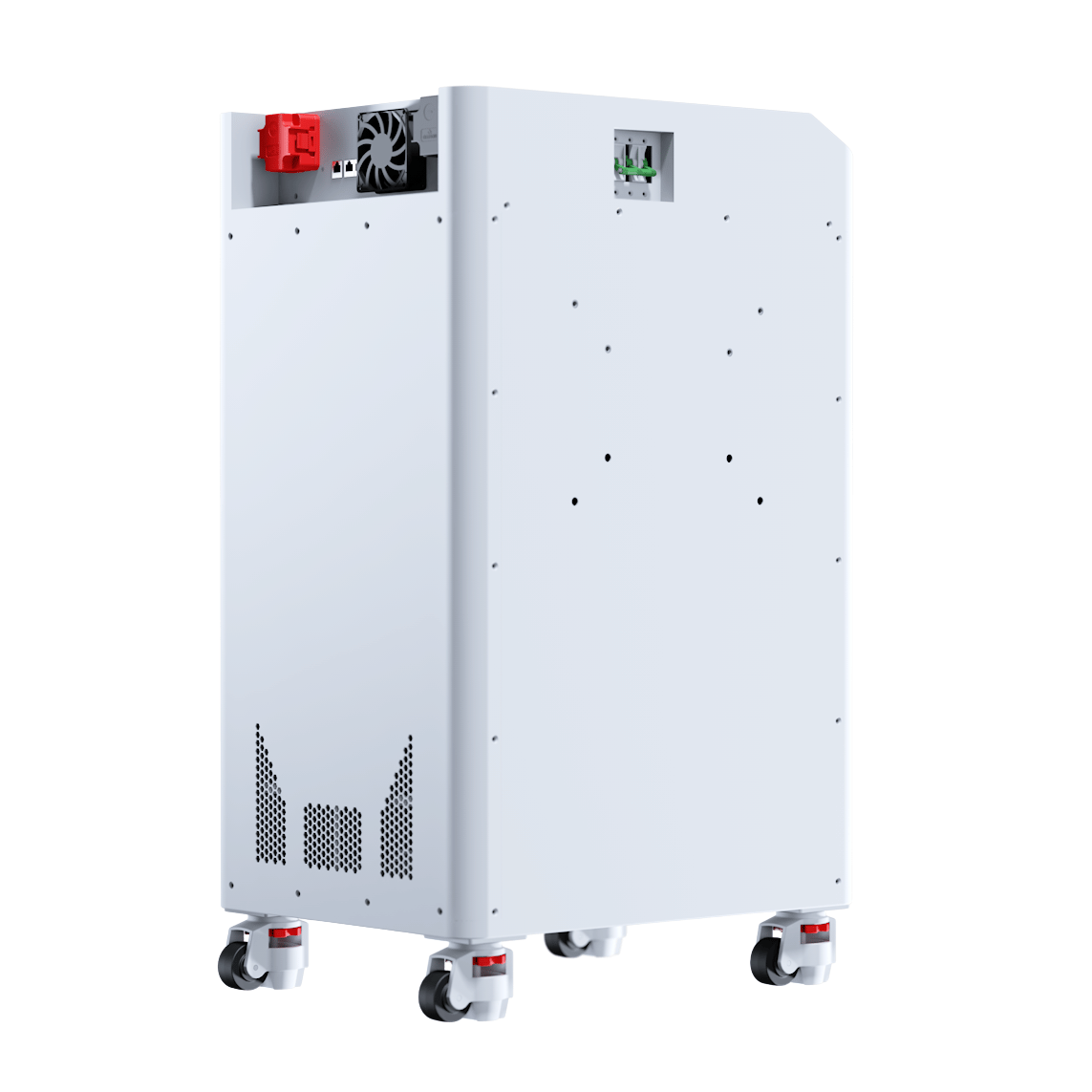

- Smart cooling fan with dust-proof honeycomb vents prevents overheating
- Built-in aerosol fire suppression and circuit breaker for enhanced safety
- Ideal for household renewable energy, off-grid power, and industrial use
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | Mason-628L-N |
| Rated Energy(kWh) | 32.15kWh |
| Configuration | 2P16S |
| Nominal Voltage(V) | 51.2V |
| Working Voltage(V) | 41.6V-57.6V |
| Rated Capacity(Ah) | 628Ah |
| Rated charge/discharge Current(A) | 157A@25± 2°C (Recommended) |
| Maximum charging current | 200A@25± 2°C |
| Maximum discharge current | 157A@25± 2°C (Recommended) |
| Working Temperature | 0~40°C(Charge) -20~40°C(Discharge) |
| Humidity(%) | 5-80% |
| Altitude Limited(m) | 0-3000m |
| Dimension(mm) | 416×560×910mm |
| Storage temperature and humidity | -10°C-35°C (Within one month of storage), 25±2°C (Within three months of storage), 65% ±20% RH |
| Weight | 245kg± 3kg |
| Cycle life | 8000 cycles, 70% SOH |
| IP grade | IP20 |
| Communication mode | CAN&RS485 |
Advantages of Our LV battery packs
- Cost Saving: 32kWh usable energy at a competitive price, reducing your energy storage project budget
- Air Cooling Fan: Efficient heat dissipation ensures stable operation during prolonged use
- Aerosol Fire Suppression: Automatic fire protection enhances safety and minimizes damage risk
Built-in Intelligent BMS
Intelligent Control System
- Overcharge, over-discharge, and overcurrent protection
- Active cell balancing for optimal performance
State Monitoring:
- Real-time SOC (State of Charge) calculation
- SOH (State of Health) estimation
- Voltage, current, and temperature monitoring
Communication:
- CAN and RS485 protocol support
- Compatible with inverters and monitoring systems
- Remote control and data exchange
Fault Diagnosis:
- Real-time fault detection and alerts
- Event logging with timestamps
- Diagnostic codes for troubleshootin
32kWh LiFePO4 Battery Bank - 15-Year Reliable Power
Built with A-grade lithium iron phosphate cells and advanced BMS protection, this system delivers 8,000+ cycles of safe, efficient energy storage.
Why Choose This System:
- 15-year lifespan with 8,000+ charge cycles
- Multi-layer BMS protection for maximum safety
- Eco-friendly: lead-free and acid-free
- Certified: CE, IEC, UN38.3, MSDS compliant
- 10-year warranty included
This 32kWh battery bank features A grade LiFePO4 cells with 15-year lifespan and 8000+ cycles. Advanced BMS ensures safe operation. Eco-friendly, certified (CE, IEC, UN38.3, MSDS etc), and backed by 10-year warranty.
Highly Compatible with Various Inverters
Compatible with all Pylontech-protocol inverters via CAN or RS485. Supported brands include PYLONTECH, SUNSYNK, Afore, Growatt, SMA, SOROTEC, GOODWE, Victron Energy, Deye, SOFAR SOLAR, Voltronic Power, and Sol-Ark. Custom protocol matching available upon request.
• Expandable from 32kWh to 512kWh for Larger Energy Needs
A single 51.2V 628Ah solar battery offers 32kWh, but it supports modular parallel connection, allowing the capacity to expand up to 512kWh.
• Suitable for a Wide Range of Applications
32KWh Lithium battery packs are widely applicable to the following scenarios:Home Energy Storage, Commercial Storage, Industrial Backup Power, Off-Grid Power Systems, Grid-Tied Power Systems, and Uninterruptible Power Supplies (UPS) etc.
