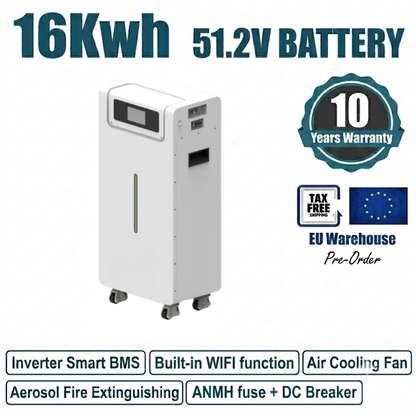

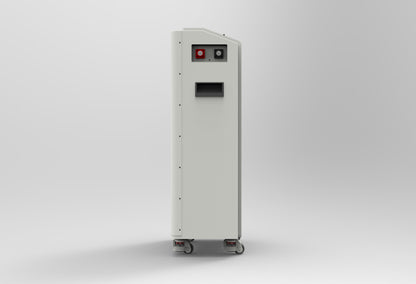

51.2V 314Ah 16KWh diy battery case,with all accessories use for assemble battery packs EU warehouse
51.2V 314Ah 16KWh diy battery case,with all accessories use for assemble battery packs EU warehouse
★Service: 10 Years Warranty
★Support: OEM,ODM,OBM,Customized
★Certificates: IEC,CE,ROHS,UN38.3,ISO etc.

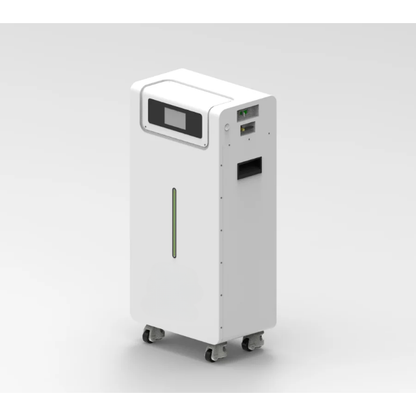

The 51.2V 314Ah LiFePO4 Energy Storage System delivers 16kWh of reliable power for residential, off-grid, and commercial applications.
Key Features:
-
Automotive-Grade Cells：
- Enhanced safety, durability, and lower operating costs
-
Plug-and-Play Installation
- Easy setup, user-friendly operation, improved efficiency
-
Bluetooth Monitoring
- Real-time tracking via Bluetooth and LCD display
-
Scalable Energy Storage
- Easily expand capacity as your needs grow
-
Certified & Long-Lasting
- CE/DGM/EMC/MSDS certified, 6000+ cycles lifespan
Technical Parameters
| Model | SKS-L2-314 |
| Configuration | 1P16S |
| Nominal Voltage(V) | 51.2V |
| Working Voltage(V) | 41.6V~57.6V |
| Nominal Capacity (Ah) | 314Ah |
| Nominal Power (KWh) | 16.07kWh |
| Standard charge/discharge Current (A) | 157A@25± 2°C (Recommended) |
| Maximum charging current | 200A@25± 2°C |
| Maximum discharge current | 200A@25± 2°C |
| Working Temperature | 0~40°C(Charge), -20~40°C(Discharge) |
| Storage temperature and humidity | -10°C~35°C (Within one month of storage), 25±2°C (Within three months of storage), 65% ±20% RH |
| Dimension(mm) | (817)x(412)x(267)mm |
| Weight | 113kg±3kg |
| Cycle life | 6000 cycles @25°C 100ACharge and discharge current 80%DOD |
| IP grade | IP 20 |
| Communication mode | CAN&RS485 |
| Altitude | 0-3000m |
| Humidity | 5~80% |
Low Voltage 48V Energy Storage Solution - Suitable Inverters
| Brand | Protocol | Communication | Version |
|---|---|---|---|
| Pylontech | CAN-Bus-Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| SMA | FSS-ConnectingBat-TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorotec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol_V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| MUST | PV1800F CAN Communication Protocol | CAN | V1.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS-Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
Advantages of Our LV battery packs
- Cost Saving: 16kWh usable energy at a competitive price, reducing your energy storage project budget
- Air Cooling Fan: Efficient heat dissipation ensures stable operation during prolonged use
- Aerosol Fire Suppression: Automatic fire protection enhances safety and minimizes damage risk
Built-in Intelligent BMS
Intelligent Control System
- Overcharge, over-discharge, and overcurrent protection
- Active cell balancing for optimal performance
State Monitoring:
- Real-time SOC (State of Charge) calculation
- SOH (State of Health) estimation
- Voltage, current, and temperature monitoring
Communication:
- CAN and RS485 protocol support
- Compatible with inverters and monitoring systems
- Remote control and data exchange
Fault Diagnosis:
- Real-time fault detection and alerts
- Event logging with timestamps
- Diagnostic codes for troubleshootin

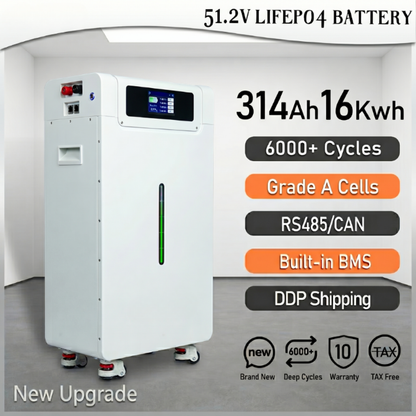

16kWh LiFePO4 Battery Bank - 15-Year Reliable Power
Built with A-grade lithium iron phosphate cells and advanced BMS protection, this system delivers 8,000+ cycles of safe, efficient energy storage.
Why Choose This System:
- 15-year lifespan with 8,000+ charge cycles
- Multi-layer BMS protection for maximum safety
- Eco-friendly: lead-free and acid-free
- Certified: CE, IEC, UN38.3, MSDS compliant
- 10-year warranty included
This 16kWh battery bank features A grade LiFePO4 cells with 15-year lifespan and 8000+ cycles. Advanced BMS ensures safe operation. Eco-friendly, certified (CE, IEC, UN38.3, MSDS etc), and backed by 10-year warranty.

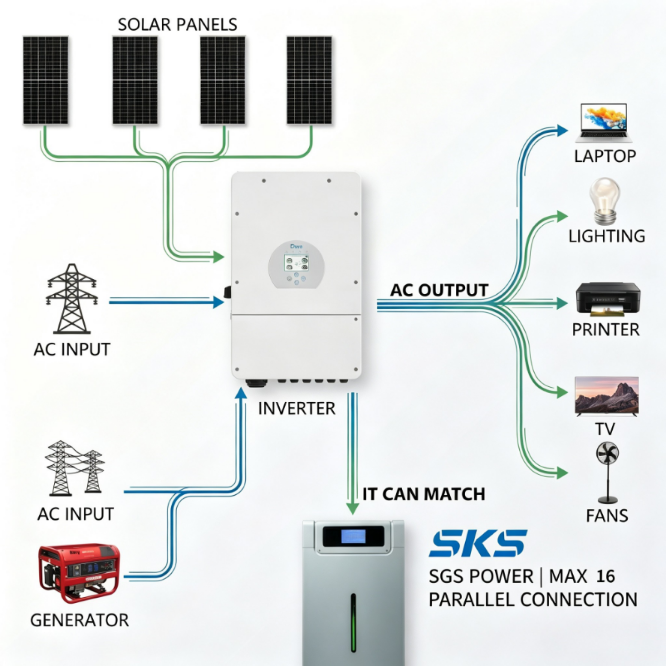

Highly Compatible with Various Inverters
Compatible with all Pylontech-protocol inverters via CAN or RS485. Supported brands include PYLONTECH, SUNSYNK, Afore, Growatt, SMA, SOROTEC, GOODWE, Victron Energy, Deye, SOFAR SOLAR, Voltronic Power, and Sol-Ark. Custom protocol matching available upon request.
• Expandable from 16kWh to 256kWh for Larger Energy Needs
A single 51.2V 314Ah solar battery offers 16kWh, but it supports modular parallel connection, allowing the capacity to expand up to 256kWh.
• Suitable for a Wide Range of Applications
16KWh Lithium battery packs are widely applicable to the following scenarios:Home Energy Storage, Commercial Storage, Industrial Backup Power, Off-Grid Power Systems, Grid-Tied Power Systems, and Uninterruptible Power Supplies (UPS) etc.
