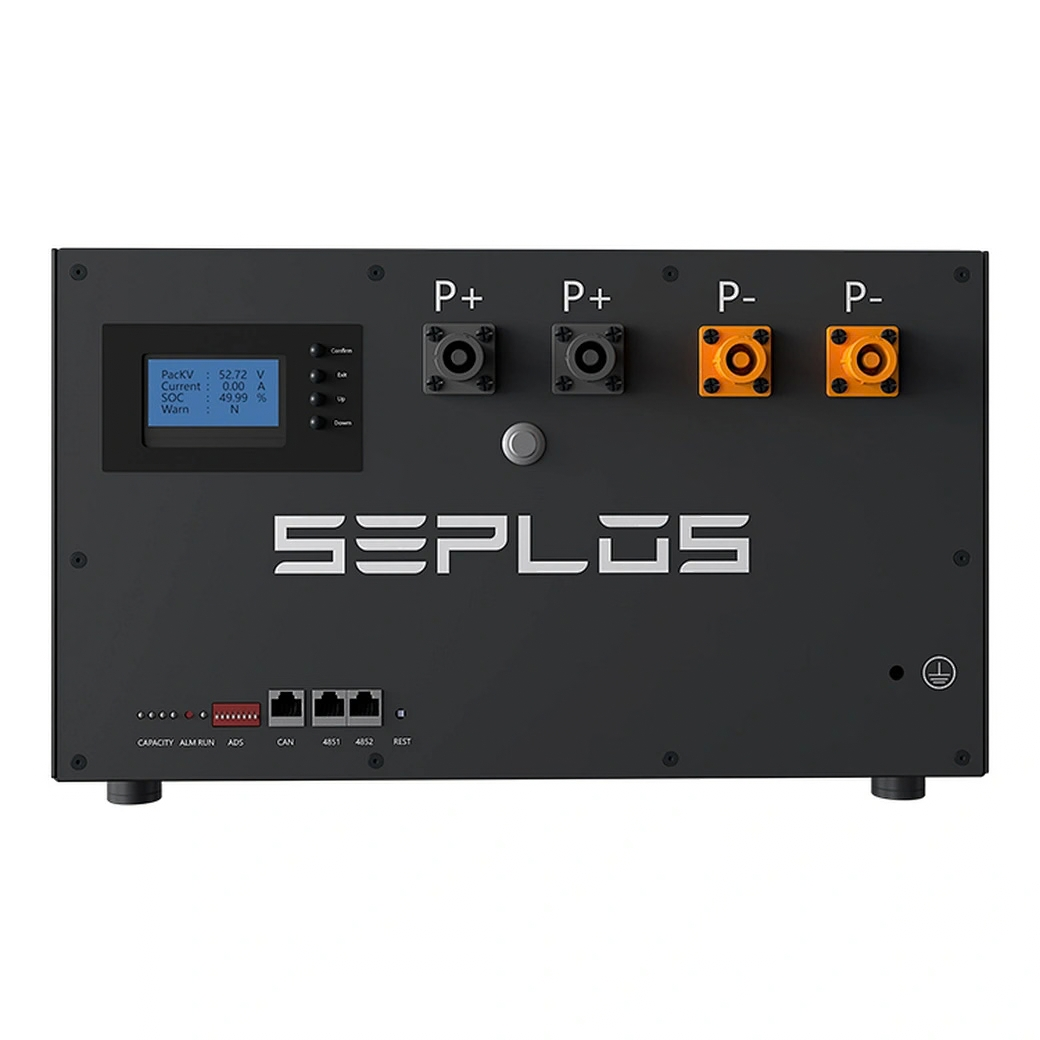

EU Warehouse-51.2V 280Ah/314Ah Lifepo4 battery packs with grade A HSEV cells
EU Warehouse-51.2V 280Ah/314Ah Lifepo4 battery packs with grade A HSEV cells
★Service: 10 Years Warranty
★Support: OEM,ODM,OBM,Customized
★Certificates: IEC,CE,ROHS,UN38.3,ISO etc.

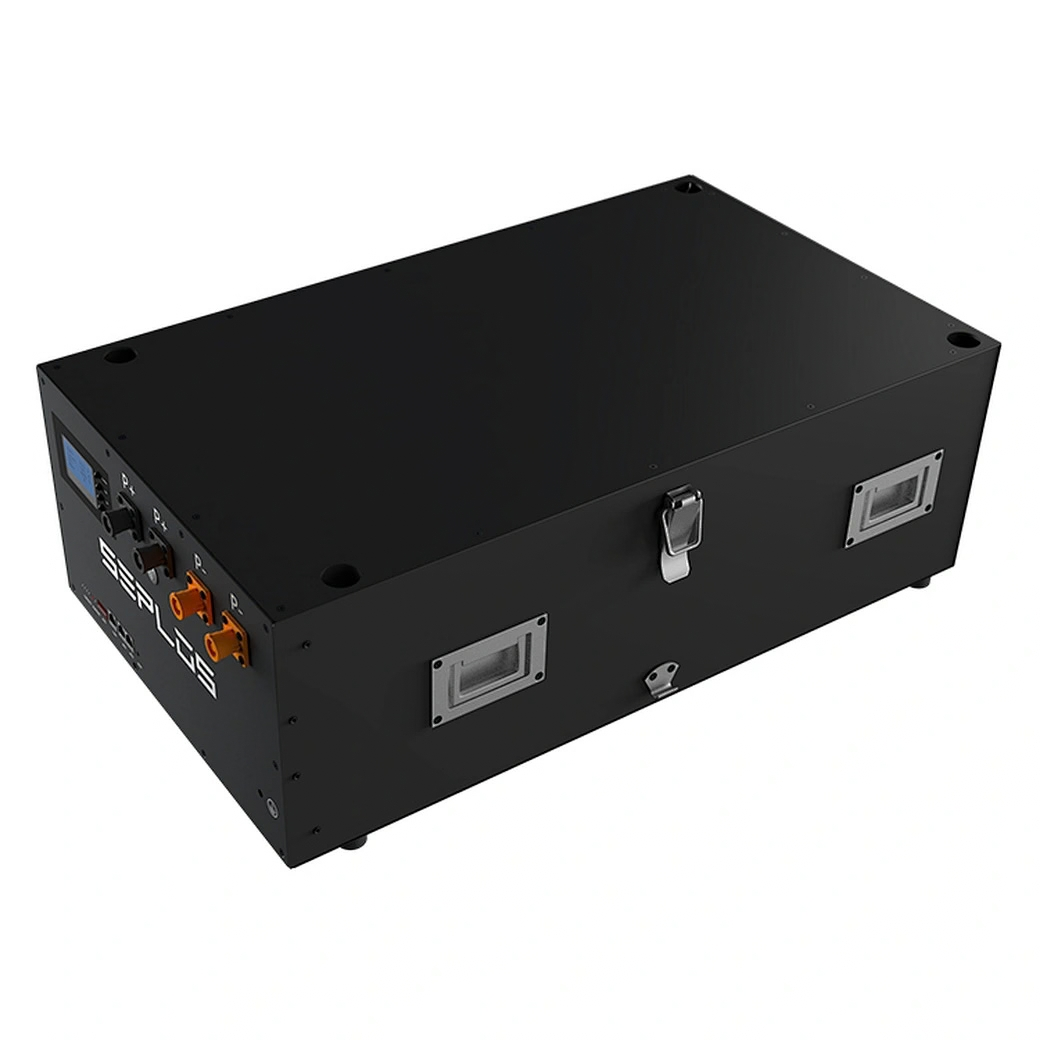

The Seplos Mason 314 51.2V LiFePO4 Energy Storage System delivers 16kWh of reliable power for residential, off-grid, and commercial applications.
Key Features
1.Automotive-Grade Safety & Protection
2.Intelligent Balancing & Monitoring
3.Plug-and-Play Scalability
4.Integrated Fire Suppression
Technical Parameters
| Model | Mason-280 |
| Nominal Voltage(V) | 51.2V |
| Nominal Capacity(Ah) | 280Ah @0.5C discharge current 25±2°C |
| Nominal Power(kWh) | 14.3KWh |
| Dimension(mm) | 750*440*251mm |
| Weight(kg) | 112±5KG |
| Discharge Cut-off Voltage (V) | 41.6V |
| Charge Voltage (V) | 57.6V |
| Continuous Charge/Discharge Current (A) | 140A @25±2°C (Recommended) |
| Max Standard charge/discharge Current (A) | 200A @25±2°C |
| Standard charge/discharge Current (A) | 140A @25±2°C (Recommended) |
| Cycle Life | 6000 cycles @25°C 100ACharge and discharge current 80%DOD |
| Working Temperature | 0~50°C(Charge), 10~-50°C(Discharge), 20~-55°C(Storage) |
| SOC Range | 5%-100% |
| Recommended SOC Range | 15-95% |
| Communication Interface | CAN /RS485 |
| Humidity | 10% - 85% |
| IP level | IP 20 |
Advantages of Our LV battery packs
- Cost Saving: 16kWh usable energy at a competitive price, reducing your energy storage project budget

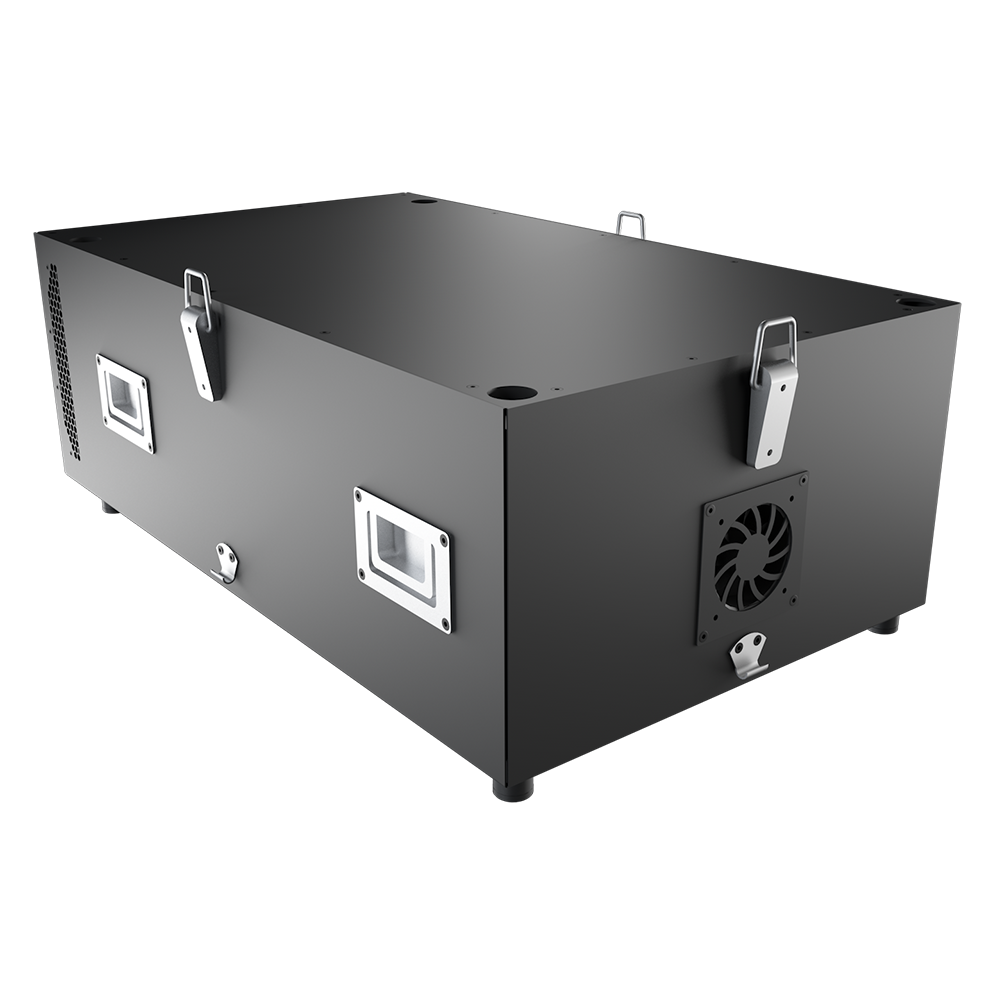

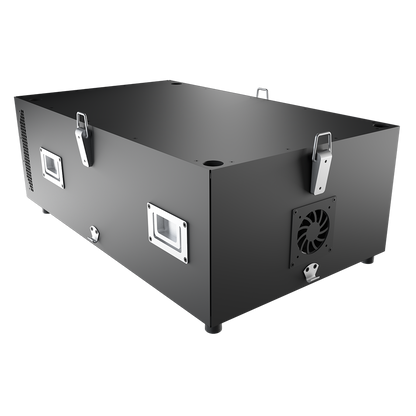

- Air Cooling Fan: Efficient heat dissipation ensures stable operation during prolonged use
- Aerosol Fire Suppression: Automatic fire protection enhances safety and minimizes damage risk
Built-in Intelligent BMS
Intelligent Control System
- Overcharge, over-discharge, and overcurrent protection
- Active cell balancing for optimal performance
State Monitoring:
- Real-time SOC (State of Charge) calculation
- SOH (State of Health) estimation
- Voltage, current, and temperature monitoring

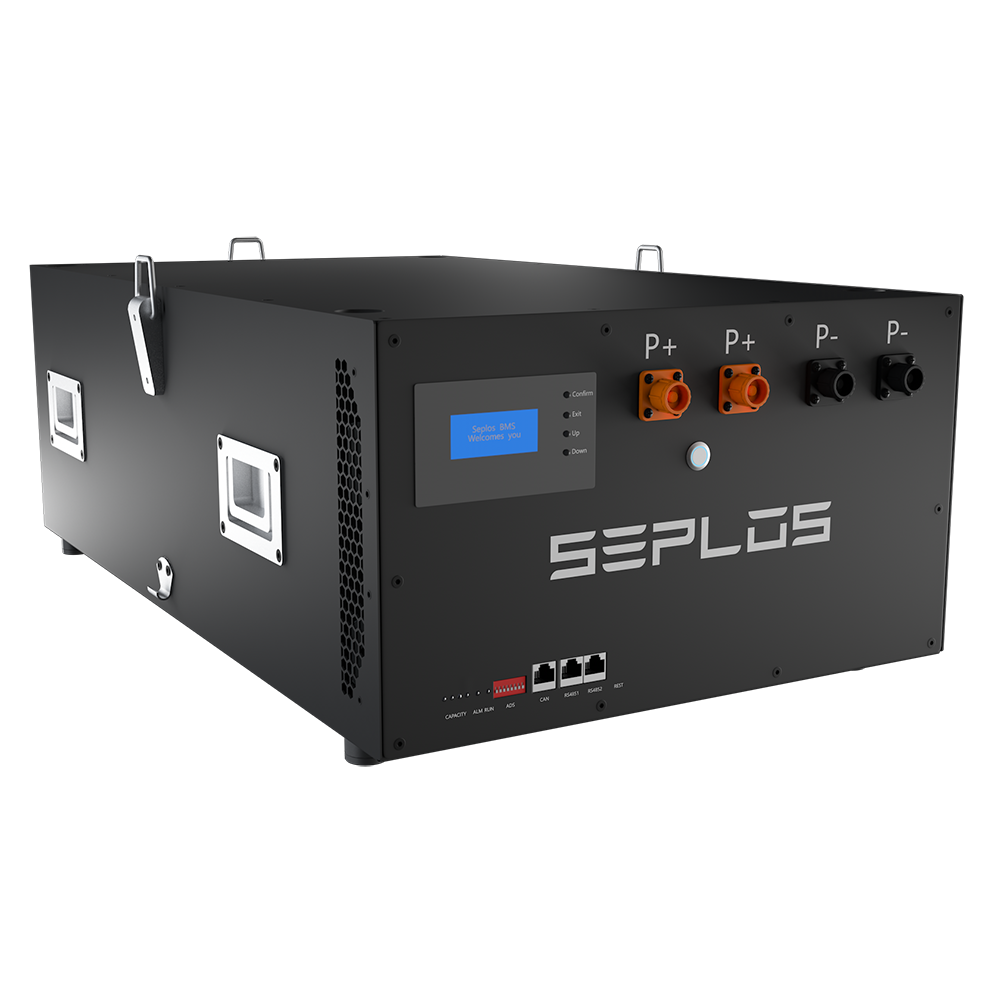

Communication:
- CAN and RS485 protocol support
- Compatible with inverters and monitoring systems
- Remote control and data exchange
Fault Diagnosis:
- Real-time fault detection and alerts
- Event logging with timestamps
- Diagnostic codes for troubleshootin
16kWh LiFePO4 Battery Bank - 15-Year Reliable Power

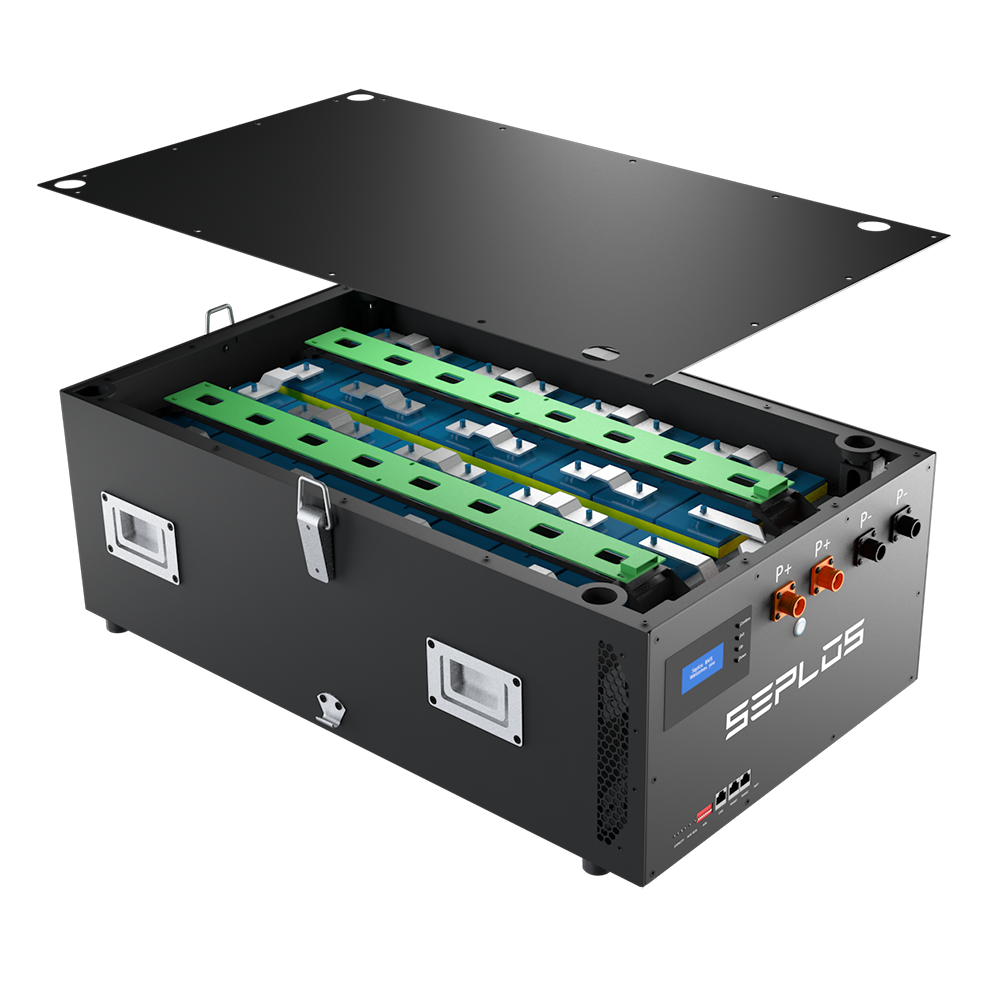

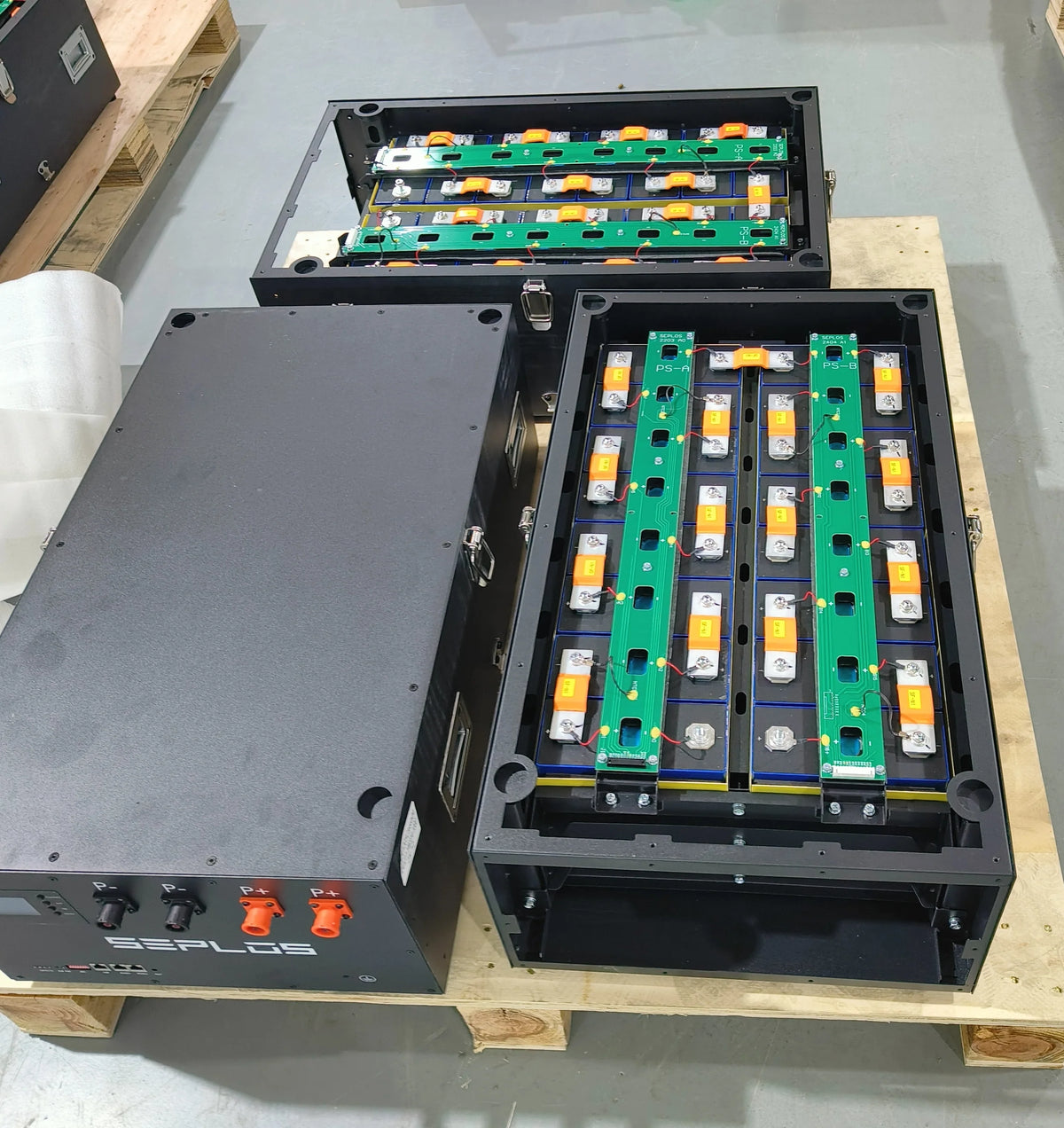

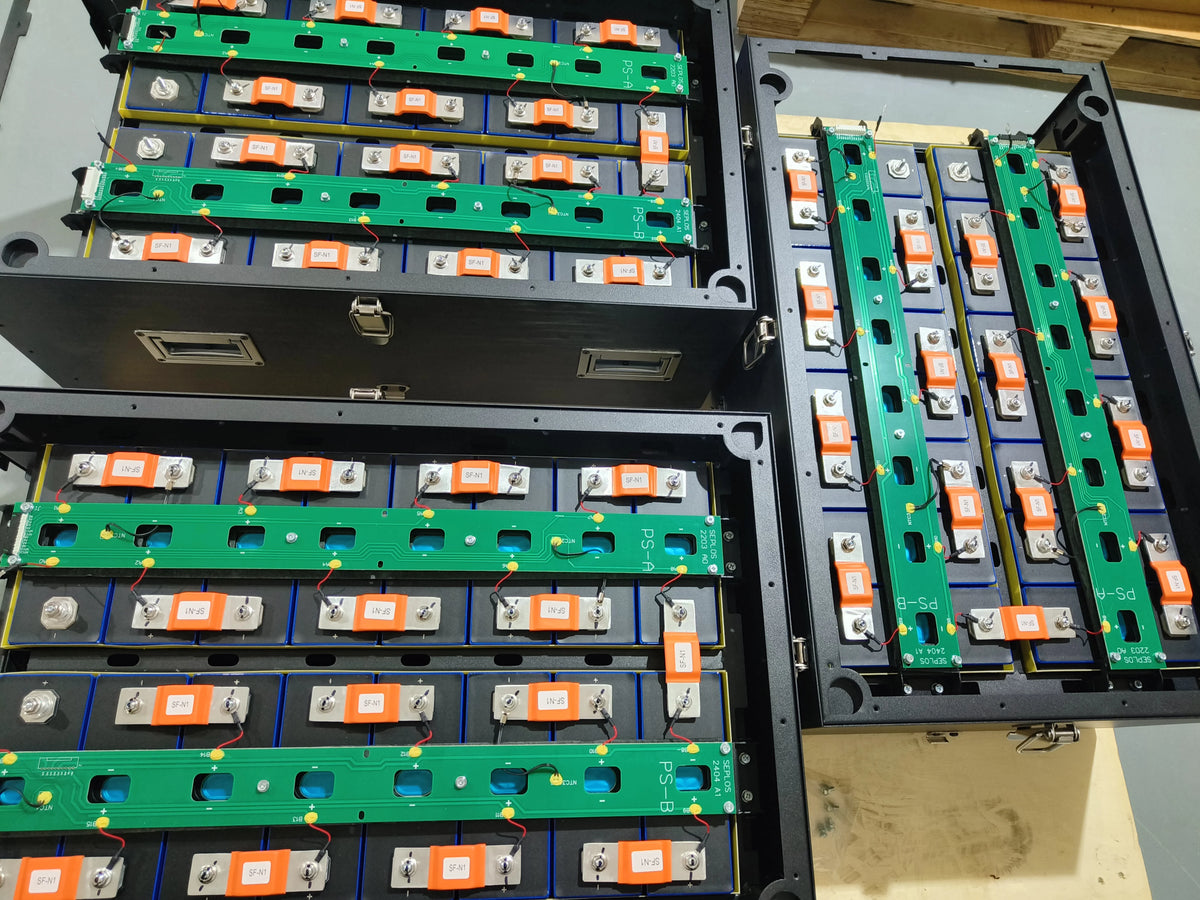

Built with A-grade lithium iron phosphate cells and advanced BMS protection, this system delivers 6,000+ cycles of safe, efficient energy storage.
Why Choose This System:
- 15-year lifespan with 6,000+ charge cycles
- Multi-layer BMS protection for maximum safety
- Eco-friendly: lead-free and acid-free
- Certified: CE, IEC, UN38.3, MSDS compliant
- 10-year warranty included
This 16kWh battery bank features A grade LiFePO4 cells with 15-year lifespan and 6000+ cycles. Advanced BMS ensures safe operation. Eco-friendly, certified (CE, IEC, UN38.3, MSDS etc), and backed by 10-year warranty.
Highly Compatible with Various Inverters
Compatible with all Pylontech-protocol inverters via CAN or RS485. Supported brands include PYLONTECH, SUNSYNK, Afore, Growatt, SMA, SOROTEC, GOODWE, Victron Energy, Deye, SOFAR SOLAR, Voltronic Power, and Sol-Ark. Custom protocol matching available upon request.
• Expandable from 16kWh to 256kWh for Larger Energy Needs
A single 51.2V 280Ah solar battery offers 16kWh, but it supports modular parallel connection, allowing the capacity to expand up to 256kWh.
• Suitable for a Wide Range of Applications
16KWh Lithium battery packs are widely applicable to the following scenarios:Home Energy Storage, Commercial Storage, Industrial Backup Power, Off-Grid Power Systems, Grid-Tied Power Systems, and Uninterruptible Power Supplies (UPS) etc.
