Specification

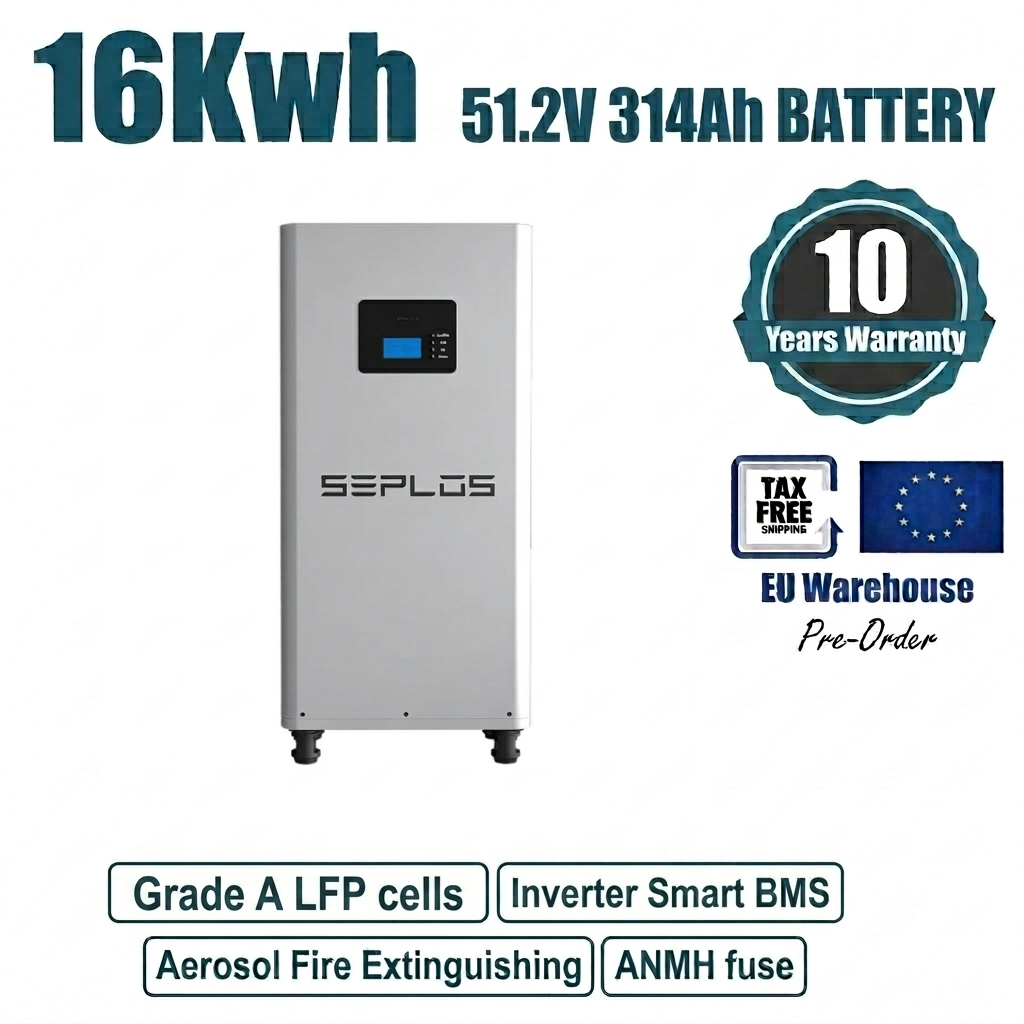

Model：Mason-314-L
Normal Voltage:51.2V
Norminal Capacity:314AH(Optional)
Configuration:1P16S
Energy Storage:16/32/48/64/80Kwh
Dimension(L*W*H):480*350*950mm
Net Weight:116kg± 3kg
Built-In BMS:16S 200A Bluetooth BMS
Communication:RS485/CANbus
Rated Charge/Discharge Current(A):100A
Maximum Charge/Discharge Current(A):200A
Working Voltage(V):41.6V~57.6V
Humidity(%):5%~80%
Battery Cells Inside Grade A HSEV Power Cells
Parallel Capability: Maximum 16 battery packs can be connected in parallel
Stackable Design: Supports up to 4 batteries in a stack
Cycle life:8000 cycles≥70% SOH
Designed for high-demand energy storage applications, our 51.2V LiFePO4 battery packs offer scalable capacity options of 280Ah (14.3kWh), 304Ah (15kWh), or 314Ah (16kWh). Each pack features a 2.5A active balance system to ensure cell uniformity.With LiFePO4 chemistry, these batteries deliver over 2000 charge cycles, making them ideal for residential solar systems, commercial energy storage, and off-grid power solutions.
