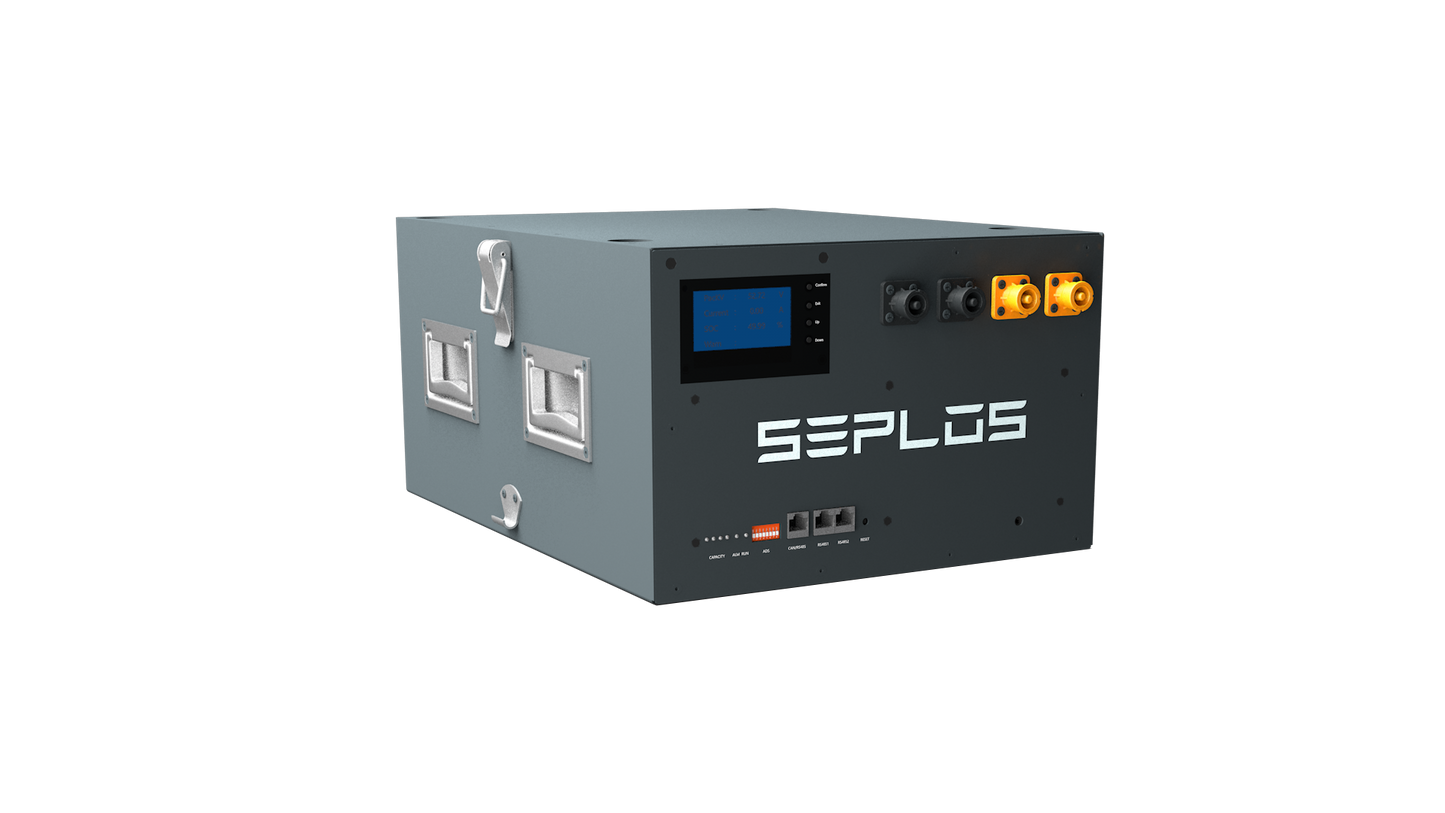

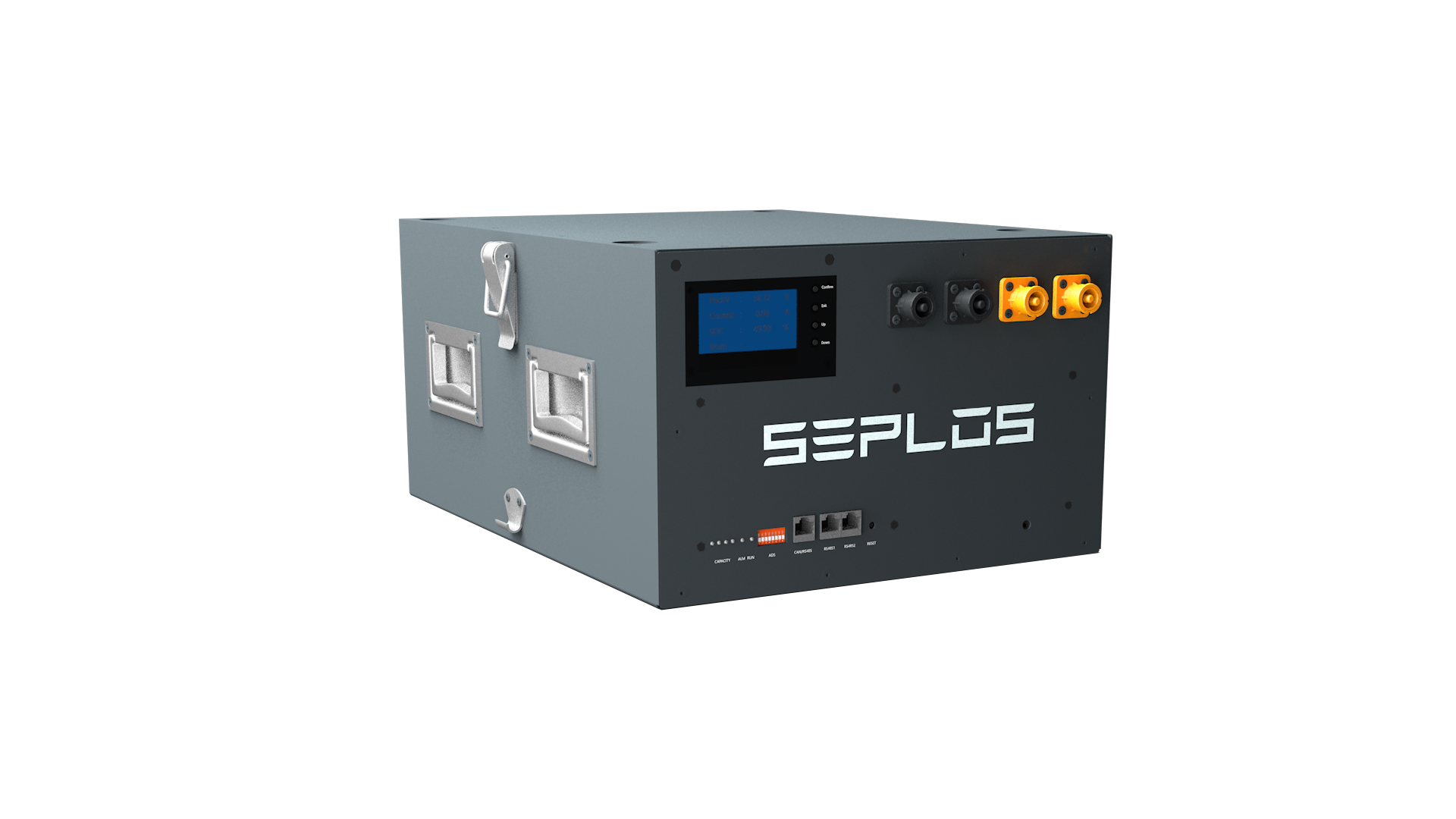

48V 51.2V 105Ah Lifepo4 DIY KITS Stackable 5KWH Battery,without cells

Specification

Model：Mason-105-N

Normal Voltage:51.2V

Norminal Capacity:105AH

Configuration:1P16S

Energy Storage:5/10/15/20/25Kwh

Dimension(L*W*H):353*460*243mm

Net Weight:18kg± 3kg

Built-In BMS:16S 100A Bluetooth BMS

Communication:RS485/CANbus

Rated Charge/Discharge Current(A):50A

Maximum Charge/Discharge Current(A):100A

Working Voltage(V):41.6V~57.6V

Humidity(%):5%~80%

Battery Cells Inside Grade A HSEV Power Cells

Parallel Capability: Maximum 16 battery packs can be connected in parallel

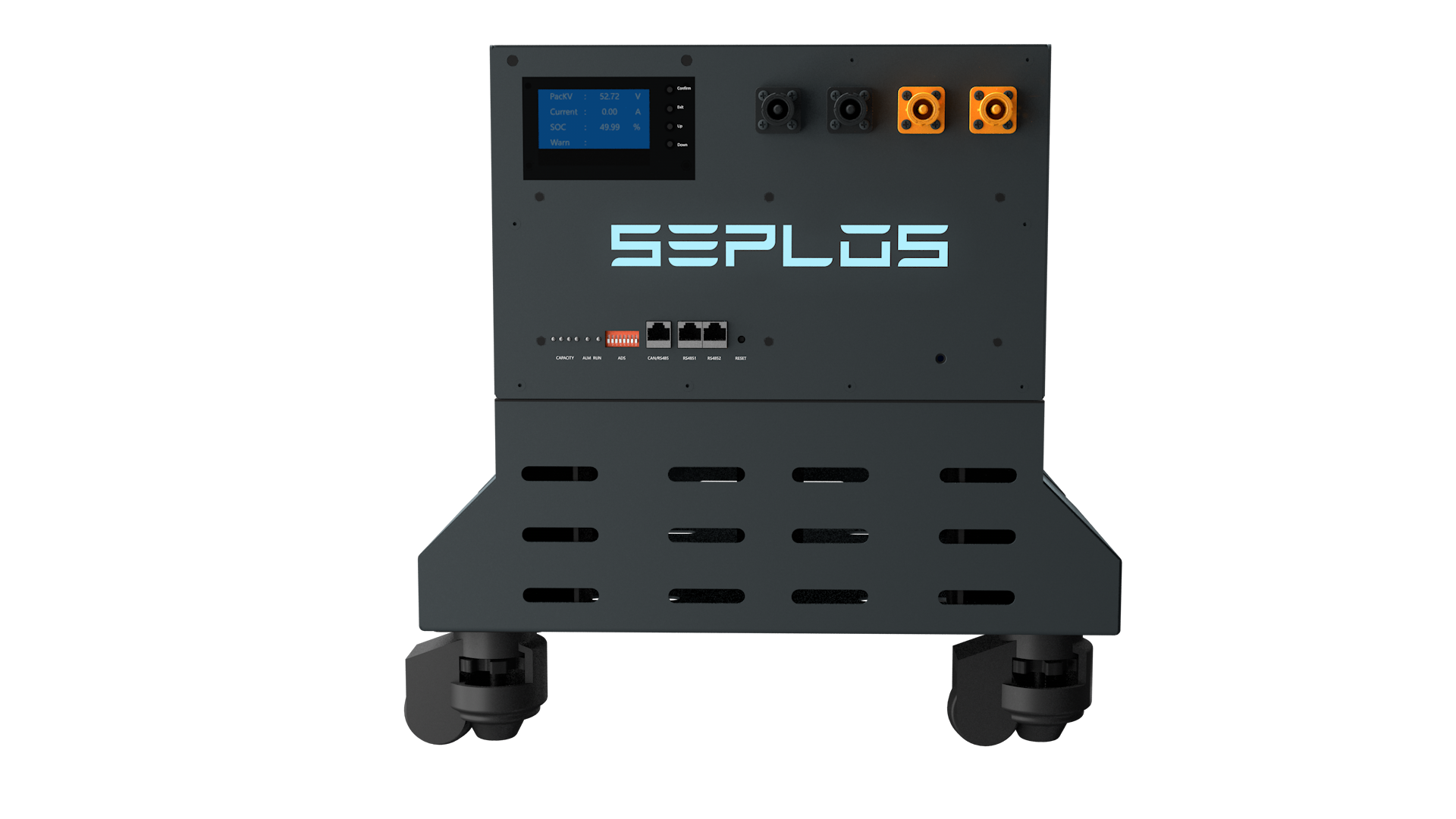

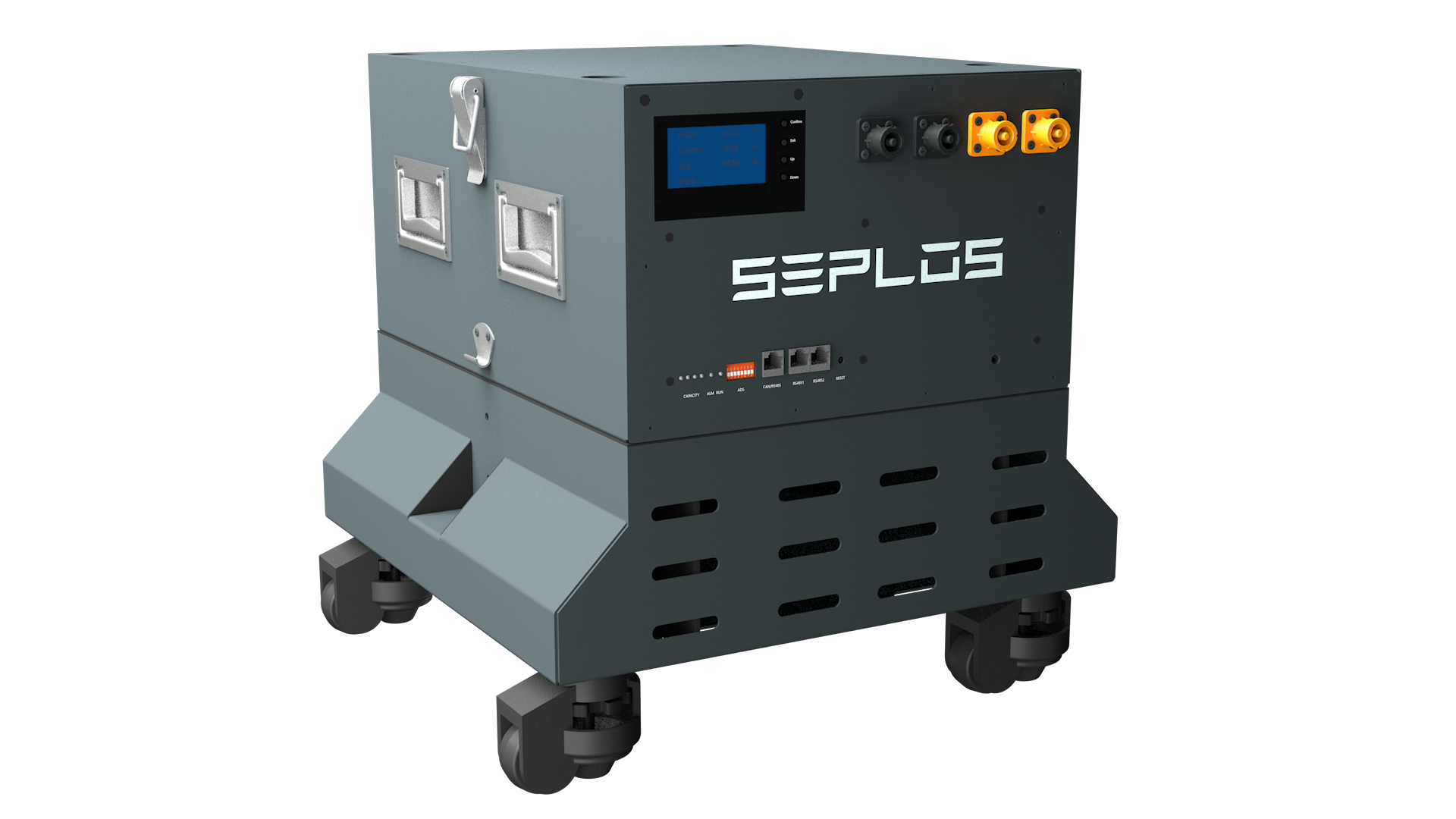

Stackable Design: Supports up to 6 batteries in a stack
