SEPLOS

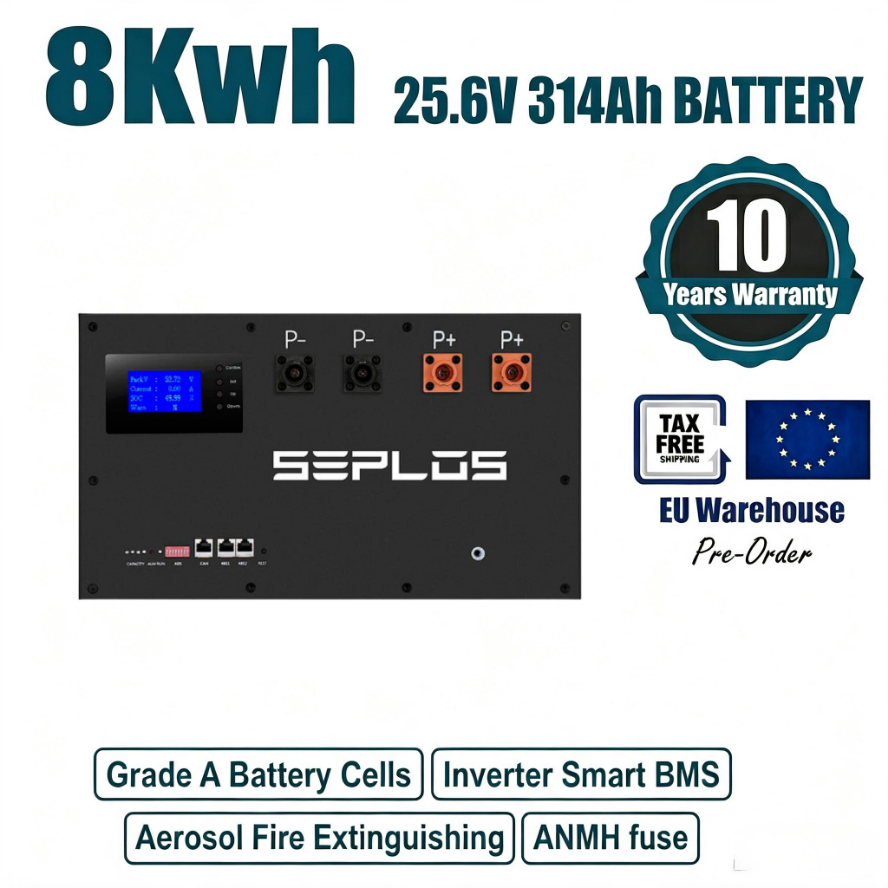

25.6V 280Ah 314Ah 8KWh stack mount ESS BATTERY PACKS with EVE grade A cells
25.6V 280Ah 314Ah 8KWh stack mount ESS BATTERY PACKS with EVE grade A cells
★Service: 10 Years Warranty
★Support: OEM, ODM, OBM, Customized
★Certificates: CE, MSDS, IEC, UN38.3, ISO, etc.
The Mason 25.6V 314Ah LiFePO4 Energy Storage System delivers 8kWh of reliable power for residential, off-grid, and commercial applications.
Key Features:
- Automotive-Grade Lithium Battery
- Plug-and-Play Design
- Bluetooth Monitoring
- Versatile Applications
- Scalable Architecture
Technical specifications
| Item | Specifications |
|---|---|
| Rated energy(kWh) | 7.16kWh |
| Configuration | 1P8S |
| Nominal Voltage(V) | 25.6V |
| Nominal Capacity(Ah) | 280Ah @0.5C discharge current 25±2°C |
| Discharge Cut-off Voltage (V) | 20.8V |
| Standard charge/discharge Current (A) | 100A @25±2°C (Recommended) |
| Max Standard charge/discharge Current (A) | 200A @25±2°C |
| Working Temperature | 0~50°C(Charge) -10~50°C(Discharge) |
| Weight(Kg) | 72Kg±3kg |
| Dimension(mm) | (450)×(440)×(251)mm |
| Recommended SOC Range | 15-95% |
| Communication mode | CAN (Default)or RS485 |
Low Voltage 48V Energy Storage Solution - Suitable Inverters
| Brand | Protocol | Communication | Versions |
|---|---|---|---|
| Pylontech | CAN-Bus Protocol-PYLON | CAN | V1.3 |
| Goodwe | Goodwe Communication Protocol | CAN | V1.5 |
| Lolis | CAN Communication Protocol | CAN | V1.0 |
| Sofar | BMS CAN BUS Protocol | CAN | V1.0 |
| SMA | FSS-ConnectingBatt TI-EN-20W | CAN | V2.0 |
| Victron | Can-Bus_Bms_Protocol | CAN | V1.0 |
| LUXPOWER | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Studer | Technical Specification Studer BMS Protocol | CAN | V1.03 |
| TBB | TBB BMS CAN Communication V1.02 | CAN | V1.02 |
| Deye | CAN-Bus-Protocol-PYLON-V1.3 | CAN | V1.0 |
| Sorotec | 2_CAN Protocol 1.0 | CAN | V1.0 |
| MEGAREVO | Hybrid Inverter_5K_BMS Protocol_V1.01 | CAN | V1.01 |
| Amensolar | CAN-Bus-Protocol-PYLON | CAN | V1.0 |
| MUST | PV1800F CAN Communication Protocol | CAN | V1.04.04 |
| AFORE | Luxpowertek Battery CAN Protocol | CAN | V1.0 |
| Pylontech | RS485-Protocol-Pylon-Low-Voltage | 485 | V3.5 |
| Voltronic Power | Voltronic Inverter And BMS 485 Communication Protocol | 485 | V1.0 |
| SRNE | PACE BMS-Modbus Protocol For RS485 | 485 | V1.3 |
| Deye | RS485-Protocol-Pylon-Low-Voltage | 485 | V1.0 |
Advantages of Our LV battery packs
- Cost Saving: 8kWh usable energy at a competitive price, reducing your energy storage project budget
- Air Cooling Fan: Efficient heat dissipation ensures stable operation during prolonged use
- Aerosol Fire Suppression: Automatic fire protection enhances safety and minimizes damage risk
Built-in Intelligent BMS
Intelligent Control System
- Overcharge, over-discharge, and overcurrent protection
- Active cell balancing for optimal performance
State Monitoring:
- Real-time SOC (State of Charge) calculation
- SOH (State of Health) estimation
- Voltage, current, and temperature monitoring
Communication:
- CAN and RS485 protocol support
- Compatible with inverters and monitoring systems
- Remote control and data exchange
Fault Diagnosis:
- Real-time fault detection and alerts
- Event logging with timestamps
- Diagnostic codes for troubleshootin
8kWh LiFePO4 Battery Bank - 15-Year Reliable Power
Built with A-grade lithium iron phosphate cells and advanced BMS protection, this system delivers 8,000+ cycles of safe, efficient energy storage.
Why Choose This System:
- 15-year lifespan with 8,000+ charge cycles
- Multi-layer BMS protection for maximum safety
- Eco-friendly: lead-free and acid-free
- Certified: CE, IEC, UN38.3, MSDS compliant
- 10-year warranty included
This 8kWh battery bank features A grade LiFePO4 cells with 15-year lifespan and 8000+ cycles. Advanced BMS ensures safe operation. Eco-friendly, certified (CE, IEC, UN38.3, MSDS etc), and backed by 10-year warranty.
Highly Compatible with Various Inverters
Compatible with all Pylontech-protocol inverters via CAN or RS485. Supported brands include PYLONTECH, SUNSYNK, Afore, Growatt, SMA, SOROTEC, GOODWE, Victron Energy, Deye, SOFAR SOLAR, Voltronic Power, and Sol-Ark. Custom protocol matching available upon request.
• Suitable for a Wide Range of Applications
8KWh Lithium battery packs are widely applicable to the following scenarios:Home Energy Storage, Commercial Storage, Industrial Backup Power, Off-Grid Power Systems, Grid-Tied Power Systems, and Uninterruptible Power Supplies (UPS) etc.
